| Specifications | Details |
|---|---|
| Machine Alignment Capability | >2.0 Cpk @ ±12.5µm (±6 Sigma) |
| Process Alignment Capability | >2.0 Cpk @ ±12.5µm (±6 Sigma) |
| Core Cycle Time | 7 secs (4 secs with RTC option) |
| Maximum Print Area | 510 mm (X) x 508.5 mm (Y) |
| Printer Construction | One-piece optimised welded frame |
| Machine Control | ISCANTM motion control with CAN BUS network |
| Operating System | Windows Embedded XP |
| Operator Interface | TFT touch screen, keyboard, trackball with DEK Instinctiv™ software |
| Camera | HawkEye® 1700 digital camera, IEEE 1394, LED lighting, FOV 11.3 x 8.7 mm |
| Inspection Window | 75 mm² |
| Camera Positioning | High accuracy linear motors & encoders, 1 µm resolution |
| Squeegee Pressure Mechanism | Software-controlled, motorised with closed-loop feedback |
| Adjustable Stencil Mount (ASM) | 305 mm–736 mm frame size, 38 mm height, image position: center/front/custom |
| Stencil Positioning | Automatic loading with squeegee drip tray |
| Stencil Alignment | Motorised X, Y, and Theta |
| Under-Stencil Cleaning | Cyclone high-speed wet/dry/vacuum wipe with external solvent tank |
| Vacuum Assist | On-board vacuum, 35 L/sec airflow |
| Squeegee | Clamped double trailing edge (1 set included) |
| Tooling Deviation Monitor | Verification via squeegee pressure feedback |
| Machine Interface | Upline and downline FMI included |
| Connectivity | RJ-45 LAN and USB2 interfaces |
| Time To Go (TTG) | Consumable warnings via fabric, solvent, paste level gauges |
| Tri-Colour Beacon | Programmable with audible alarm |
| Environmental Monitoring | Integrated temperature and humidity sensors |
| Documentation | Hard copy + onboard manuals, tutorials, DVD support |

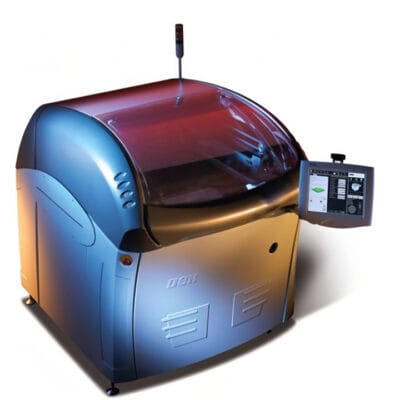

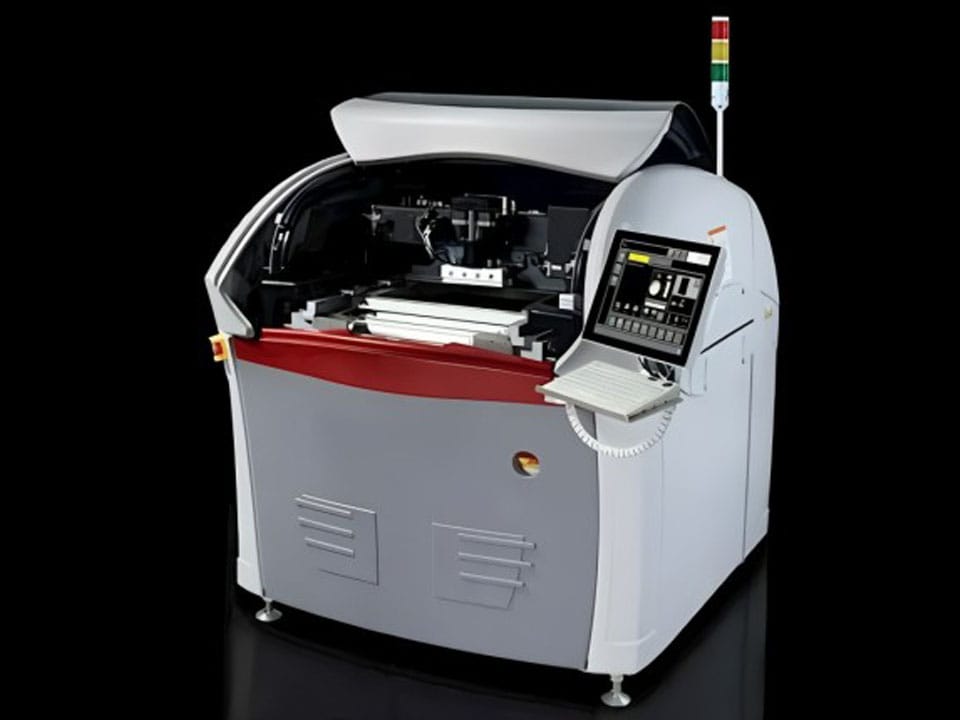

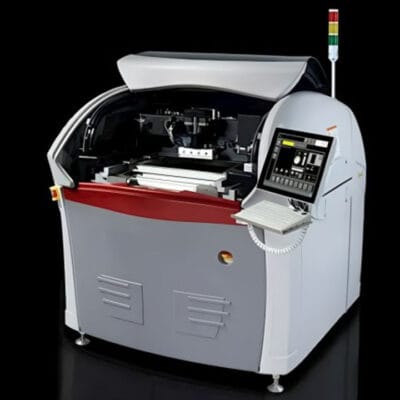

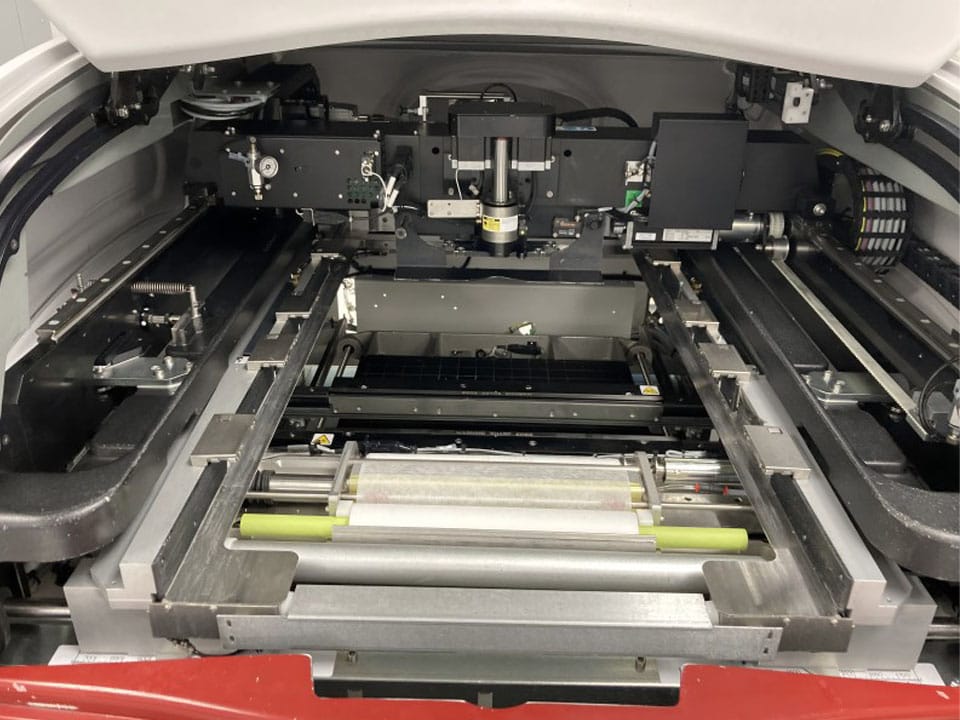

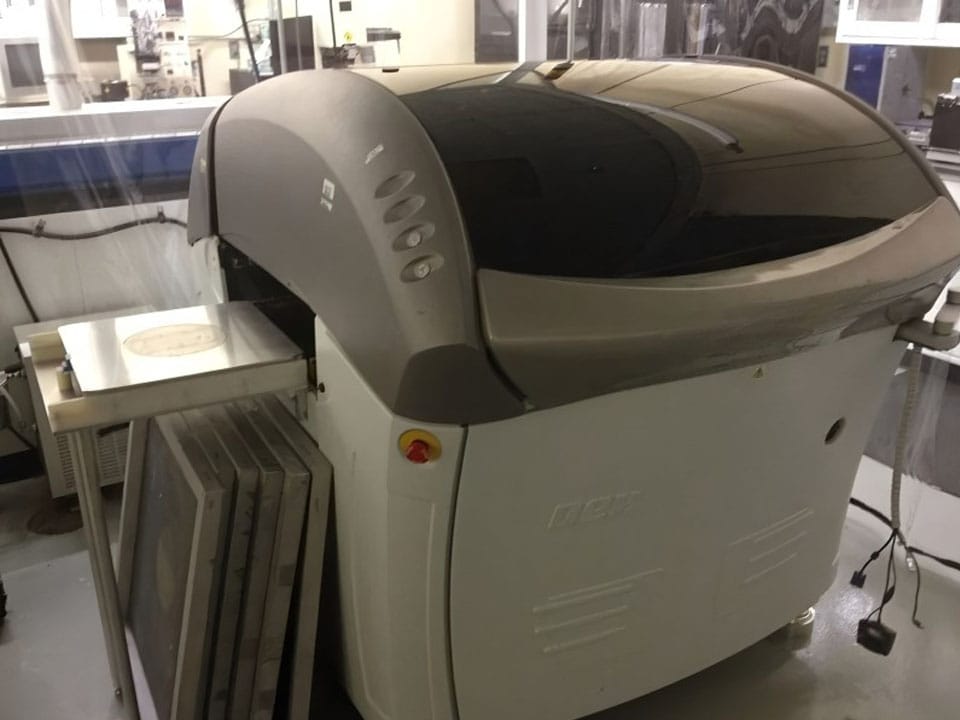

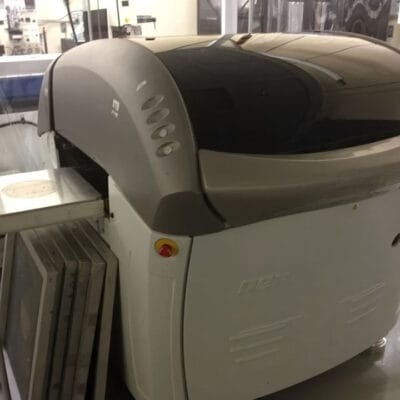

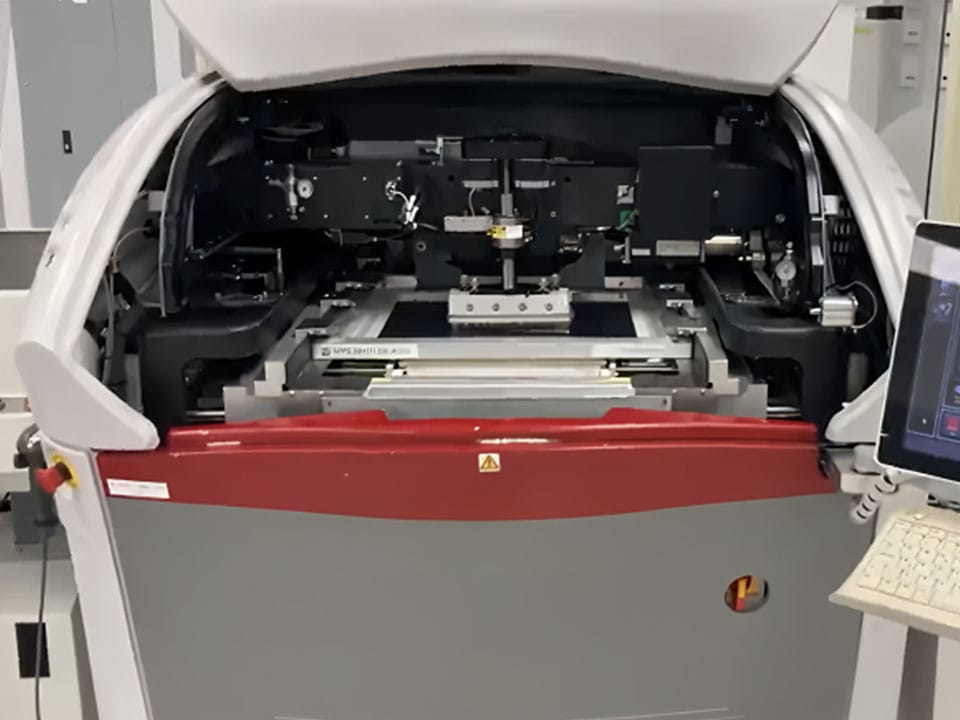

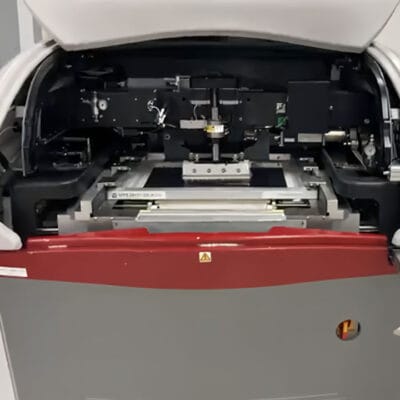

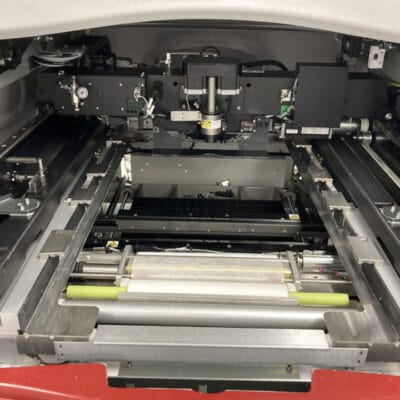

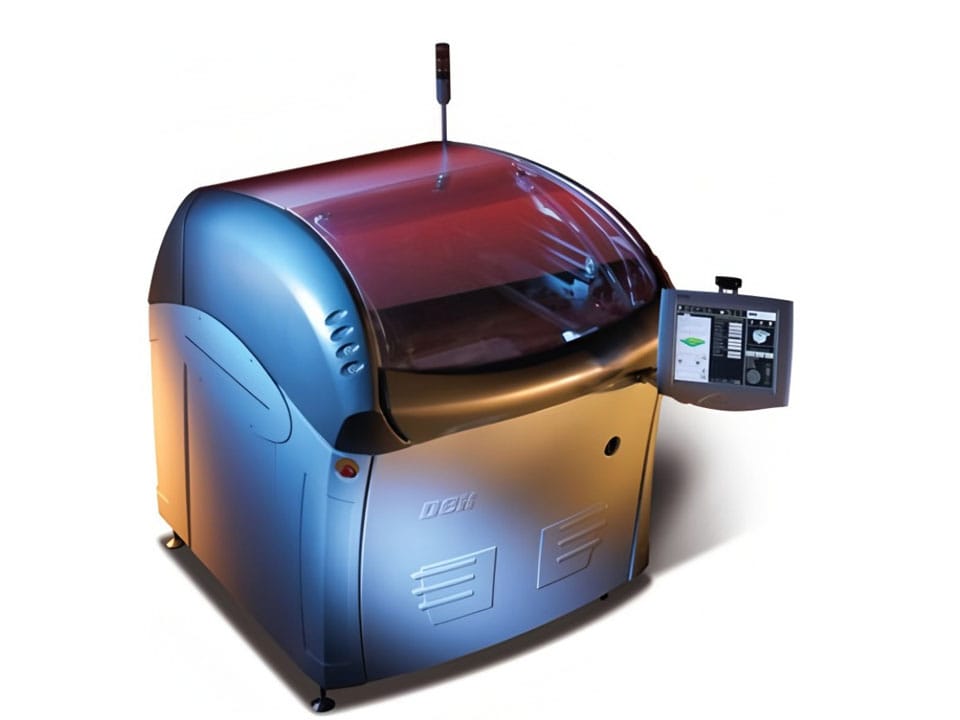

DEK Galaxy Printer OEM Manufacturer High-Quality Supply
The DEK Galaxy Printer delivers exceptional accuracy and efficiency for SMT production, designed with robust construction, advanced alignment, and user-friendly controls. With a maximum print area of 510 x 508.5 mm, fast cycle times, and integrated inspection features, it ensures consistent high-quality printing for demanding applications.
