Factory Acceptance Testing for a Complete Turnkey SMT Production Line

A full turnkey SMT production line can look excellent while doing almost absolutely nothing useful.

Makers are powered. Tower lights blink green. Conveyors relocate. A technician puts a few boards, the pick-and-place head moves at frightening speed, and somebody reveals that the line has actually “passed.”

I do not approve that interpretation of Factory Acceptance Screening.

FAT catches lies.

A significant Manufacturing facility Approval Screening program requires the distributor to verify that the printer, SPI, placement makers, reflow oven, AOI, board handling, traceability software application, feeders, energies, safety systems, dishes, and recuperation procedures can function together under problems that resemble the manufacturing environment you in fact plan to run.

Otherwise, just what are you accepting?

The economic risks are no longer minor. Reuters reported in August 2023 that business had introduced about $166 billion in united state semiconductor and electronic devices making financial investment throughout the previous year. In October 2024, Reuters also reported that Samsung postponed taking distributions of ASML tools intended for its intended $17 billion Taylor, Texas manufacturing facility, a useful pointer that equipment shipment, manufacturing preparedness, ability preparation, and business timing are different problems.

That does not imply an SMT line appears like an EUV fab. It means the same purchase lesson uses: purchasing machinery is simple; confirming that equipment is ready to create salable output is the pricey part.

What Manufacturing Facility Acceptance Screening In Fact Shows on a Turnkey SMT Assembly Line

Manufacturing Facility Acceptance Screening is a pre-shipment confirmation procedure conducted at the distributor or integrator’s center versus concurred technical and industrial approval requirements.

The essential phrase is agreed acceptance standards.

A supplier showing that a machine powers on shows nearly nothing. A proper SMT line acceptance test must show four different points:

1. Individual equipment ability— each equipment performs its specific feature.
2. Line combination— devices exchange boards, signals, dishes, alarms, and traceability details correctly.
3. Refine ability— the line can repetitively manufacture the concurred examination product within defined top quality limitations.
4. Recovery capability— the line acts predictably when something goes wrong.

I put unusual weight on number 4.

The majority of sales demonstrations show regular procedure. Production manufacturing facilities invest an uneasy amount of time managing unusual procedure: empty feeders, declined fiducials, poor barcodes, printer cleaning alarms, conveyor jams, lost interaction, power disruptions, stove alarm systems, and drivers pressing the wrong switch.

Your FAT requires both worlds.

Freeze the SMT Line Approval Examination Before Anyone Runs a Board

The most awful time to discuss acceptance standards is while standing close to a running machine.

Do it before FAT.

The acquisition agreement or FAT protocol need to recognize the PCB, Gerber information, BOM, centroid documents, component bundle mix, solder paste, stencil, feeder configuration, target cycle time, board measurements, line arrangement, assessment policies, appropriate problems, tasting strategy, measurement equipment, and responsibility for consumables.

And specify the.

A supplier stating, “We attained 99.9% placement,” suggests nothing till I know whether that number represents pick-up success, positioning efforts, approved placements, finished boards, AOI outcomes, or by hand left out mistakes.

For placement-machine characterization, IPC-9850A establishes procedures and methodologies for determining and reporting surface-mount placement devices accuracy and repeatability. That distinction matters: an identified dimension technique need to not be confused with a global customer acceptance number.

So I would certainly never write:

Placement maker must have great Cpk.

I would certainly write something closer to:

Positioning precision will satisfy the acquired equipment specification using the agreed examination artefact, part classes, measurement system, sample amount, and statistical approach, with all raw placement data provided to the buyer.

Numbers initially. Adjectives later on.

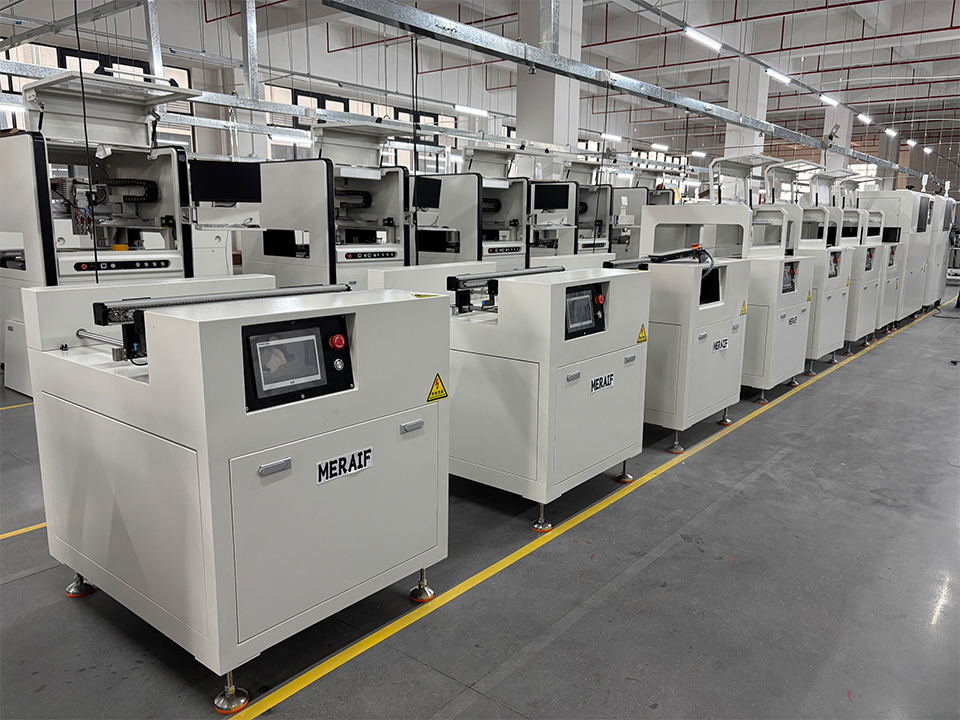

FAT the Complete SMT Line as One System, Not Eight Separate Devices

This is where many complete tasks end up being deceptive.

The printer maker checks the printer. The positioning supplier evaluates the mounter. The oven supplier has actually currently evaluated the oven. AOI boots appropriately.

Everybody enjoys.

Then the total PCB setting up assembly line is put together at the client’s factory and discovers that maker sizes do not integrate properly, barcode layouts disagree, upstream/downstream handshaking falls short, recipe identifying is inconsistent, or traceability documents disappear in between machines.

That is not turnkey.

A full FAT needs to start with the actual product circulation:

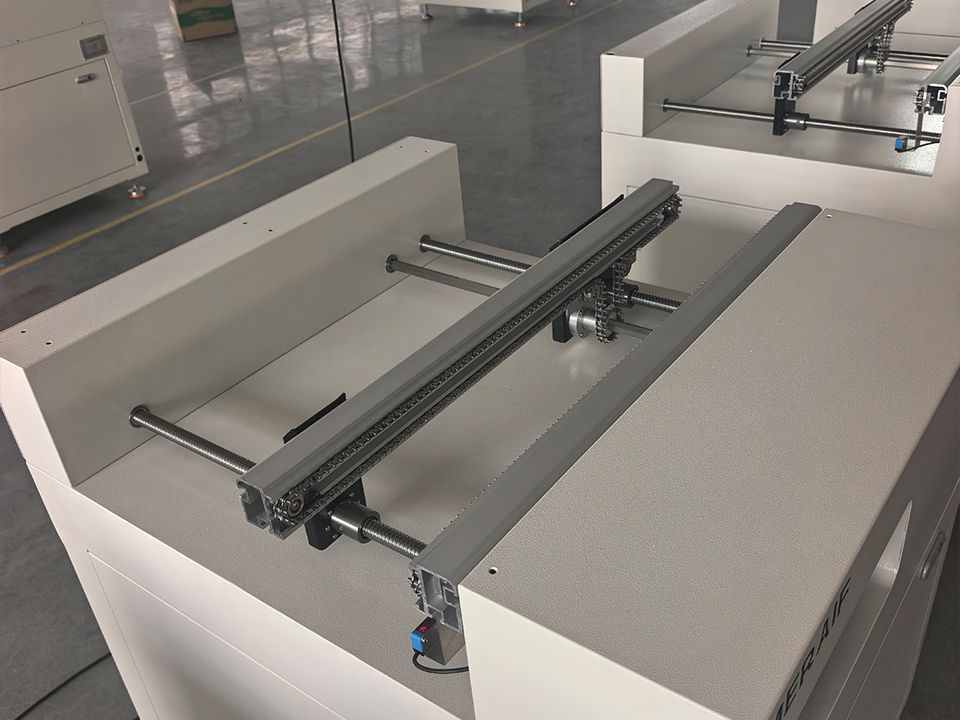

Loader → solder paste printer → SPI → conveyor/buffer → pick-and-place → reflow stove → AOI → unloader

Your configuration might add laser noting, NG buffers, X-ray, discerning soldering, depaneling, magazine systems, or MES interfaces. Penalty. Check the actual setup being bought.

Examine SMEMA/Hermes communication where applicable. Check board-ready and machine-ready states. Deliberately quit a downstream device and verify upstream build-up actions.

After that reactivate it.

Does production recuperate instantly? Does a board go away from traceability? Does one conveyor keep feeding until boards collide?

This is where the refined trial ends and design begins.

Machine-by-Machine SMT Line FAT Checklist

Solder Paste Printer

Begin with mechanical condition, calibration standing, stencil clamping, PCB assistance, tooling, conveyor width modification, fiducial recognition, paste giving where fitted, bottom cleansing, and program recall.

Then print repetitively.

Measure what issues: placement uniformity and solder paste deposition on the test PCB. The SPI system, not somebody’s eyesight, should come to be the primary resource of evidence for volume, height, location, balanced out, and process stability where those measurements are part of your defined process.

IPC released J-STD-005B, Requirements for Soldering Pastes, in 2024, together with J-STD-001J and IPC-A-610J. That is an excellent reminder that paste, refine control, and finished-assembly requirements are various layers of the exact same production trouble.

SPI System

Do not simply validate that SPI discovers solder.

Obstacle it.

Run well-known variances or controlled poor prints. Confirm measurement repeatability, false-call habits, barcode organization, program alteration control, alarm system limits, SPC export, and communication with the printer if closed-loop adjustment is part of the purchased system.

One uneasy concern should constantly be asked:

Can the assessment system find the problems you assert it avoids?

Pick-and-Place Machines

This is generally where advertising numbers end up being harmful.

Headline CPH is not your manufacturing facility throughput.

Positioning makers ought to be examined making use of the agreed element mix, feeder population, nozzle arrangement, board dimension, fiducials, positionings per board, and running mode. A device ranked using a maximized synthetic standard can behave extremely differently on a board having 0201 passives, QFNs, fine-pitch ICs, ports, shields, odd-form gadgets, and numerous feeder changes.

Validate at minimum:

• Positioning precision and repeatability
• Pickup reliability
• Vision recognition
• Fiducial correction
• Feeder indexing
• Nozzle condition and automated nozzle exchange
• Component rejection logic
• Wrong-part prevention
• Barcode and reel-ID traceability
• Machine-to-MES data
• Program backup and restore
• Changeover actions

I additionally desire the raw failing log.

A positioning success number without being rejected groups is a sales number.

Reflow Stove

The oven has to be profiled with the designated production board or a technically justified matching.

Videotape conveyor speed, zone setpoints, determined board temperatures, heating behavior, cooling down actions, nitrogen operation if bought, oxygen surveillance if specified, exhaust condition, alarm system habits, and recipe repeatability.

Do not copy a generic peak-temperature number right into the FAT and call it engineering.

The legitimate thermal window depends upon solder alloy, paste provider referrals, PCB thermal mass, part thermal restrictions, package building, and the suitable production demands. IPC J-STD-001 concentrates on controlled soldering procedures, while temperature level profiling is its very own technique.

If the vendor can not generate the real profiler file, thermocouple map, and taped account, I concern the examination as insufficient.

AOI and Last Inspection

AOI should not be evaluated by whether it creates eye-catching 3D pictures.

Step discovery performance.

Develop or maintain known-good and known-defect samples covering the problems pertinent to the board: missing components, polarity mistakes, offset, lifted leads, incorrect elements where noticeable, inadequate solder, linking, tombstoning, and various other appropriate conditions.

Track false calls independently from gets away.

A machine that catches every defect by turning down half the boards is not an intelligent evaluation process. It is a costly quit switch.

Show Throughput, High Quality, and Repeatability Under Constant Manufacturing

One gold board is ineffective evidence.

I like a continuous production run enough time to subject thermal stabilization, feeder actions, printer cleansing periods, board transfer delays, assessment traffic jams, operator interventions, and build-up issues.

The precise board count must be agreed contractually since a 20-placement LED board and a 2,000-placement industrial controller do not deserve the same sampling plan.

Step:

• Boards per hour
• Real line cycle time
• Bottleneck cycle time
• Placements attempted
• Placement declines
• Feeder mistakes
• Printer interventions
• SPI problems
• Reflow alarm systems
• AOI defects and false phone calls
• Finished great boards
• Downtime by category

And maintain the timestamps.

Suppose a turnkey SMT production line is sold at 30 boards/hour, yet the positioning devices are separately fast enough for 45 boards/hour. If printer cleansing, SPI examination, oven conveyor spacing, and AOI evaluation draw continual outcome to 24 boards/hour, the line did not attain 45.

It did not even accomplish 30.

The slowest constrained procedure possesses the factory.

Utilize a Composed FAT Approval Matrix, Not Memory

The values below are instances of just how a buyer can structure an SMT line FAT list; mathematical limitations must be changed with the contractual requirements for the bought makers, item, and process.

This matrix needs to have 4 areas providers dislike: examination technique, pass threshold, proof, accountable notary.

That is specifically why I utilize them.

SMT Devices Commissioning Includes the Dull Mechanical Details

Appointing failings commonly originate from ordinary points.

Air pressure. Vacuum. Grounding. Lubrication. Belt tension. Filters. Exhaust. Inaccurate voltage. Harmed feeders. Missing licenses.

Not glamorous.

Still pricey.

Examine every lubrication point noted by the devices maker and contrast the set up lubricant with the upkeep BOM. If the approved service documentation specifies it, Panasonic MP oil for SMT devices is one precision-machinery lubricating substance classification that may appear in upkeep planning; the referenced product details lists SMT devices amongst its applications.

For various other mechanical assemblies, specifications matter more than brand name experience. The provided OKS 422 NLGI 2 industrial grease is explained with a lithium-complex thickener and a shown -20 ° C to 150 ° C variety, while MY2-4 grease for bearings, gears, and machinery is presented for wider mechanical lubrication. Neither ought to be replaced into an SMT machine just because it is offered; the equipment manufacturer’s authorized lube requirements victories.

That last sentence matters more than the web links.

Mixing an incompatible oil right into an accuracy linear guide due to the fact that “grease is oil” is the kind of shortcut I would desire FAT documents to avoid.

Test Safety And Security, Software Application, Traceability, and Cybersecurity Before Shipment

Mechanical output is only half the line now.

Modern production equipment can include industrial PCs, Windows-based controllers, Ethernet-connected inspection platforms, remote service software application, databases, recipe servers, barcode systems, MES interfaces, USB access, customer permissions, and supplier remote-access devices.

NIST cautioned in a June 2024 Sector 4.0 production conversation that attached advanced-manufacturing technologies bring cybersecurity direct exposure alongside their operational advantages.

So the FAT ought to recognize:

• Manager accounts
• Default passwords
• User duties
• Remote-access software
• Open up network interfaces
• Back-up areas
• Software and firmware versions
• Recipe backup/restore procedure
• Certificate data
• PC recovery images
• Data source back-up
• Time synchronization
• Traceability retention
• Audit logs where offered

Then evaluate the physical safety chain.

Emergency stops. Door interlocks. Light drapes where fitted. Tower lights. Buzzer reasoning. Conveyor stop conditions. Heating unit alarm systems. Over-temperature security. Security relay behavior.

OSHA’s basic machinery policies need guarding against maker dangers, and its robotics technical support defines website approval testing as confirmation that tools does correctly with the site’s utilities, equipment user interfaces, solutions, and ecological problems.

That difference leads straight to an additional difficult fact.

A Passed FAT Does Not Change Website Acceptance Screening

Manufacturing facility Acceptance Testing solutions:

“Did the vendor prove the line prior to shipment?”

Site Acceptance Screening responses:

“Does this exact same line work after delivery, installation, energy link, progressing, networking, exhaust installation, and integration inside my factory?”

Various test.

Different threat.

A stunning FAT can not discover a client’s unsteady compressed-air supply, poor grounding, insufficient exhaust, incorrect center voltage, harmed transportation axis, floor vibration, network-policy conflict, or messed up reassembly after delivery.

I would consequently connect settlement milestones separately to FAT and SAT whenever the industrial structure allows it.

For example:

• Preliminary deposit after order
• Progression settlement after devices completion
• Settlement after observed FAT
• Retention after successful SAT

The specific portions depend on the bargain.

But paying practically everything before the line has actually created acceptable boards at your site transfers negotiating power in the incorrect direction.

Delivery is leverage.

Warning That Ought To Stop Delivery

Do not release the line just due to the fact that trips are scheduled and the products forwarder is waiting.

Stop shipment when:

• The vendor replaces a different test PCB without technological validation.
• Throughput is demonstrated only by device simulation.
• Placement precision depends just on internal self-calibration information when independent measurement was agreed.
• The oven has no taped thermal account.
• AOI is demonstrated just on best boards.
• Understood flaws can not be identified continually.
• Traceability loses board documents.
• Interlocks or E-stops are bypassed.
• Software licenses are momentary or unclear.
• Maker identification number vary from contractual paperwork.
• Substantial alarms are reset without root-cause explanation.
• The vendor rejects to supply raw test data.
• Failed items are made a note of as “to be addressed after installation” without a concurred closure device.

That last one prevails purchase toxin.

A punch-list item is acceptable when it is small, documented, owned, dated, and readily secured.

A failed core process is not a punch-list thing.

It is an unsuccessful FAT.

Often Asked Concerns

What is Manufacturing Facility Acceptance Screening for a complete turnkey SMT assembly line?

Manufacturing Facility Acceptance Screening for a full turnkey SMT production line is a pre-shipment verification process in which the purchaser and distributor prove, against created acceptance requirements, that the integrated printing, examination, placement, reflow, taking care of, software program, safety and security, and traceability systems perform as the bought manufacturing system.

The emphasis needs to get on measurable evidence instead of demonstrations. A complete FAT usually integrates device evaluation, calibration confirmation, control panel runs, process measurements, fault simulations, top quality assessment, throughput measurement, paperwork testimonial, and official recording of unsettled variances.

How do you carry out Manufacturing facility Acceptance Screening for an SMT production line?

To carry out Factory Acceptance Testing for an SMT assembly line, specify the test product and acceptance limitations initially, examine every machine, run the entire linked line under depictive production conditions, step procedure and high quality data, purposely test mistake reactions, document discrepancies, and accept delivery just after legal requirements are pleased.

Do not improvise the treatment after getting to the vendor.

The most effective outcomes come from a pre-approved FAT method including the PCB alteration, BOM, pattern, feeders, software variations, test period, dimension devices, pass/fail limits, raw-data needs, accountable workers, and punch-list policies.

What are the most effective SMT assembly line acceptance requirements?

The most effective SMT assembly line approval requirements are measurable contractual requirements covering positioning precision, publishing stability, SPI performance, thermal profiling, AOI discovery, throughput, traceability, safety, software healing, machine combination, documentation, and sustained production quality, with each need tied to a specified examination method and objective pass-or-fail threshold.

There is no global Cpk, CPH, false-call rate, or flaw target ideal to every SMT line.

A high-volume consumer board, aerospace controller, automobile ECU, prototype line, and LED production line have various threats. Use the purchased equipment requirements and your genuine item needs.

What is the distinction between FAT and SAT for SMT equipment?

FAT confirms an SMT line at the supplier’s center prior to shipment, while SAT verifies the mounted line at the client’s manufacturing facility after transport, placing, energy link, networking, exhaust setup, calibration checks, and last appointing, verifying that the provided equipment carries out properly within its actual production setting.

They should not be dealt with as compatible turning points.

Transport can move mechanical systems. Utilities can vary. Networks can turn down previously working arrangements. Exhaust and nitrogen problems transform. SAT captures those installation-specific threats.

The amount of boards should be produced throughout an SMT line FAT?

An SMT line FAT should use sufficient boards and placements to show stable continuous operation throughout the concurred procedure problems, rather than depending on a global board matter, because statistically helpful examination duration depends upon part matter, board complexity, cycle time, feeder populace, examination lots, and contractual production-risk needs.

Ten boards may expose nearly nothing on an easy product.

For requiring lines, I would rather define a sustained runtime plus minimum placement chances and appropriate fault matters. That prevents a distributor from selecting a synthetically easy board quantity while still giving both sides a finite, auditable examination.

Should a purchaser accept small FAT failings and fix them after setup?

Small FAT inconsistencies can be accepted for delivery just when they do not compromise safety, core manufacturing capacity, high quality, traceability, or contracted throughput, and when each open item has actually a composed restorative activity, accountable proprietor, conclusion due date, retest need, and enough retained industrial leverage to make certain closure.

I would certainly not make use of that adaptability for missing out on thermal validation, fell short security gadgets, unsteady positioning accuracy, undependable board transfer, significant software application mistakes, or incomplete traceability.

Those are not aesthetic issues.

They specify whether the line works.

Do Not Accredit Delivery on a Verbal Assurance

A complete SMT production line need to arrive as a tried and tested production system, not a collection of pricey devices that your designers should complete integrating.

That is the factor of Factory Approval Screening.

Define the approval criteria prior to the examination. Bring your genuine manufacturing data. Run the complete line. Procedure everything that matters. Save the raw records. Develop faults intentionally. Validate recuperation. Inspect safety. Examine upkeep paperwork. And differentiate a real minor punch-list product from a trouble that endangers production.

If a supplier claims, “We can fix it at your manufacturing facility,” my following question is basic:

Why wasn’t it repaired prior to shipment?

If you are planning a brand-new PCB setting up assembly line, send your anticipated board dimension, minimum part package, parts per board, target CPH, soldering procedure, evaluation needs, and recommended devices setup. A proper turnkey proposition must define the line design and the FAT acceptance method before the devices is developed.
