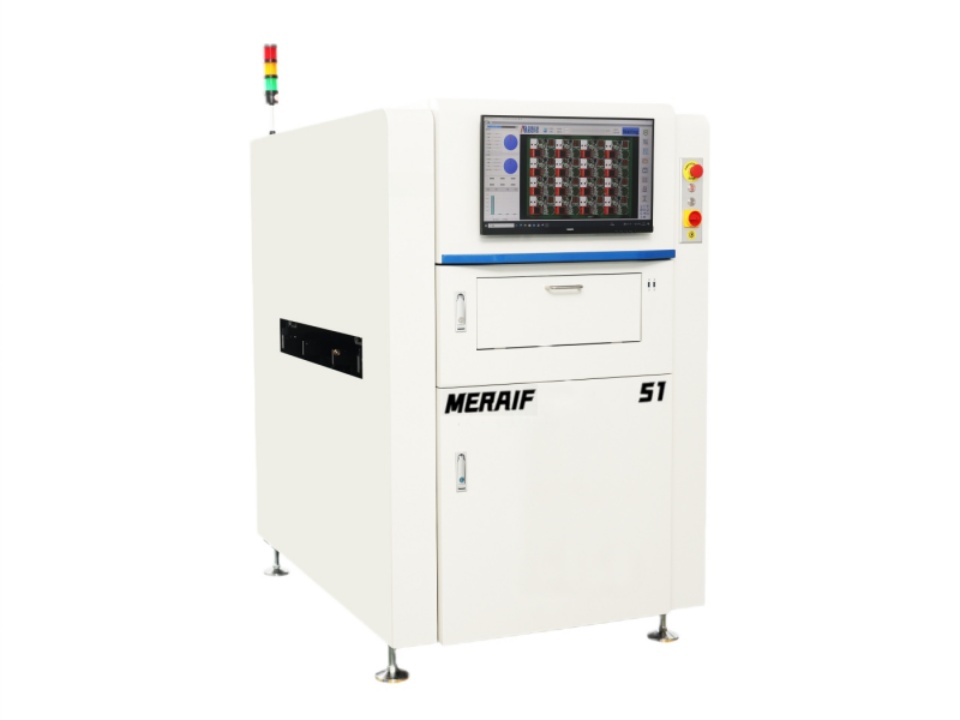

Model Variants: S1 (Standard), S1-D (Dual Lane), S1-L (Large Board)
| Parameter | Specification Details |
|---|---|
| Board Size Range | S1: 50x50mm – 510x460mm S1-D: 50x50mm – 510x275mm / 510x600mm S1-L: 50x50mm – 1200x460mm |
| Thickness Range | 0.5mm – 6mm |
| Component Height | Top side: 40mm, Bottom side: 40mm |
| Process Side | 3mm |
| Camera | 5MP color high-speed industrial camera |
| Light Source | RGB+W four-color integral light source + one-direction structured light projection unit |
| Resolution | 15μm @ 36*30mm FOV |
| Solder Paste Detection | Height, excess solder, insufficient solder, offset, bridging, solder balls, shape, coplanarity |
| Barcode Identification | 1D barcode, QR code, character recognition |
| Mixed Board Test | Supported with automatic program calling |
| Algorithm | Deep neural network, image contrast, color contrast, contour recognition |
| Speed | 0.3 seconds per FOV (Field of View) |
| Key Functions | Remote control/assistance, Gerber file import, custom model training |
| Communication | Standard SMEMA interface |
| Data Output | Automated SPC statistical analysis report generation |
| Computer | Industrial control computer |
| Display | 24-inch FHD monitor |
| Motion System | High-precision ball screw + servo motor |
| Operation Mode | Manual and automatic |
| Power Supply | AC220V, 2-2.5KVA (varies by model) |
| Air Supply | 0.4 – 0.6 Mpa |
| Operating Environment | Temperature: 10-45°C, Humidity: 30-85% RH |
