| Item | Specification |
|---|---|

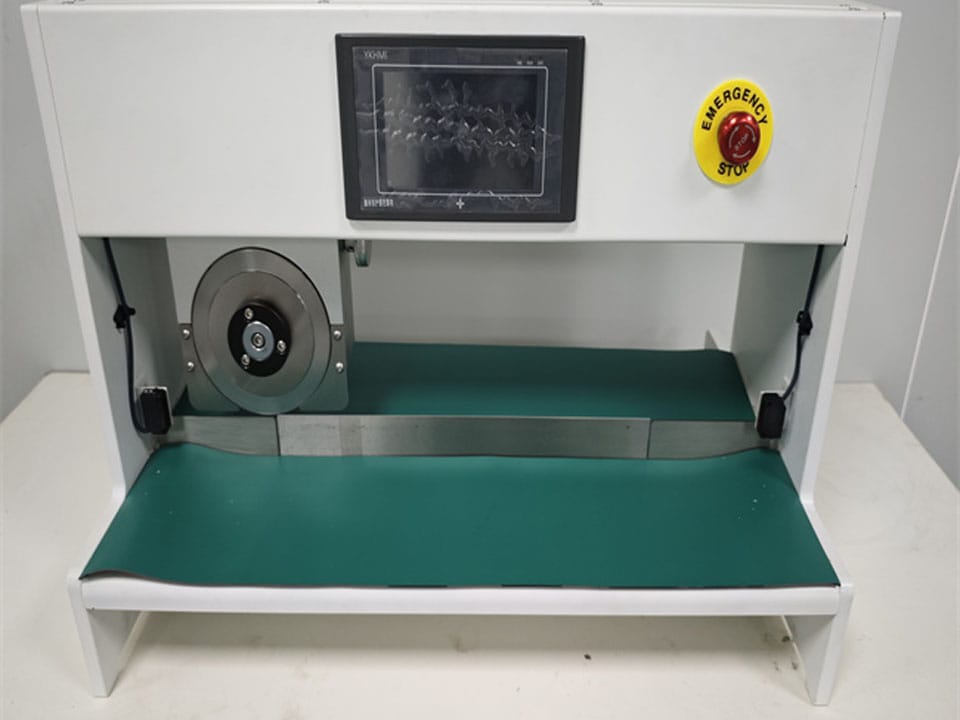

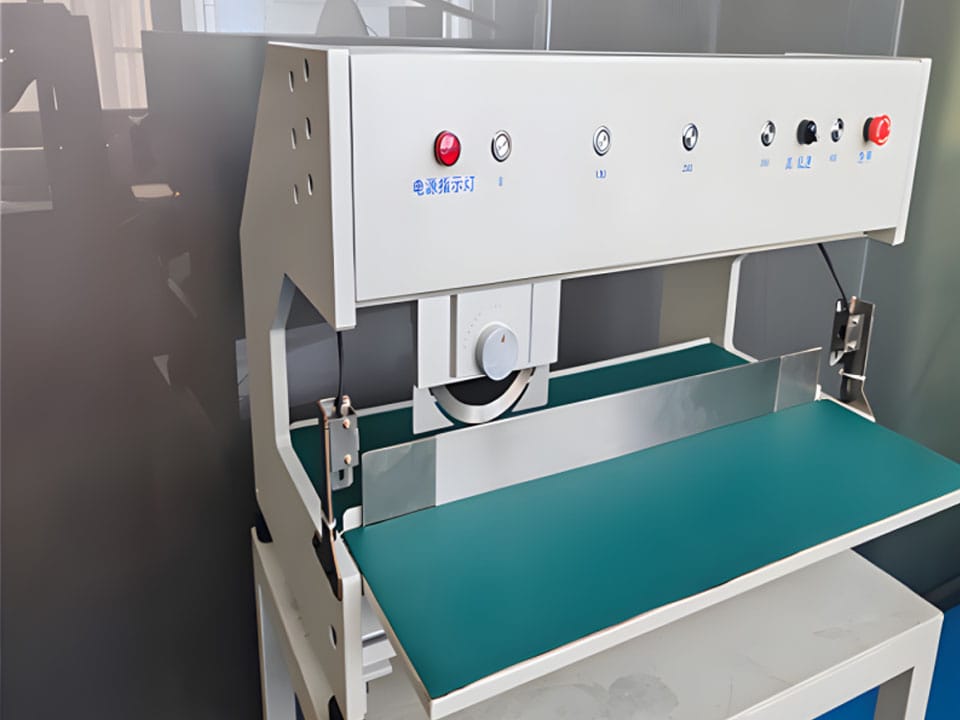

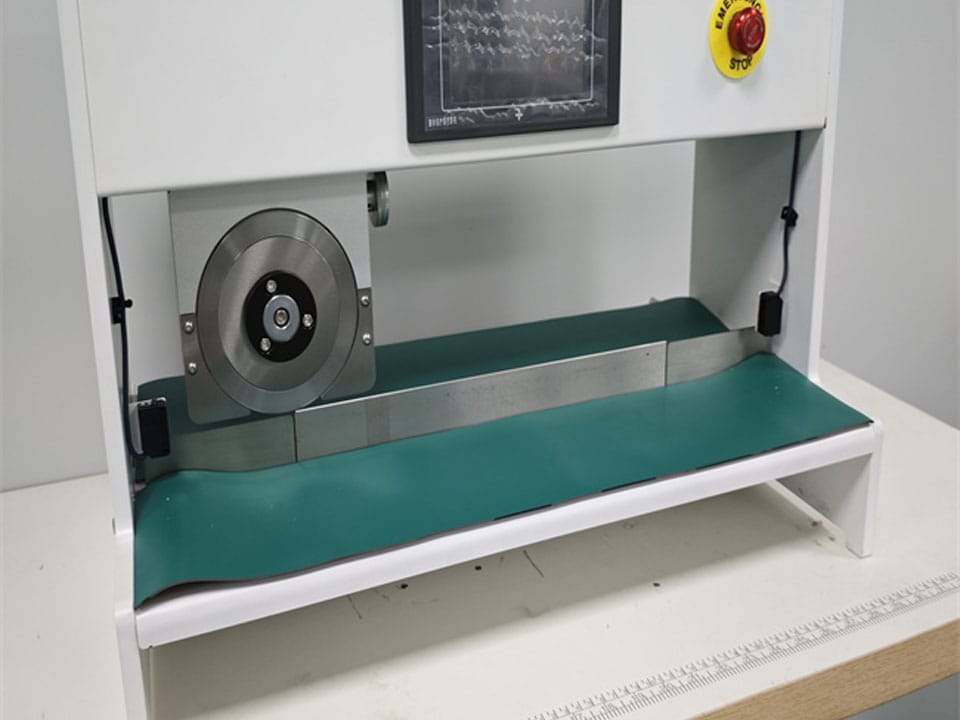

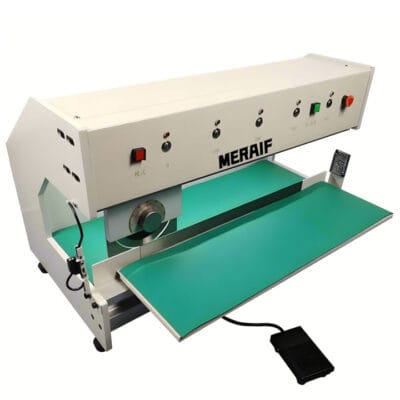

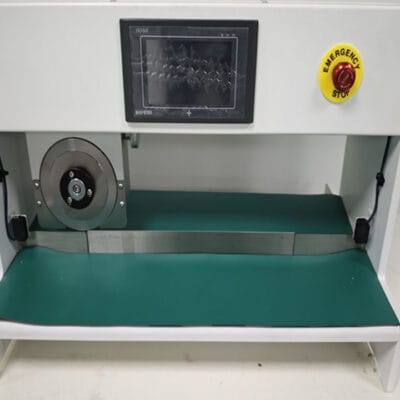

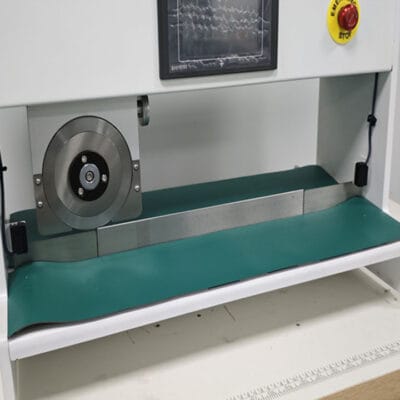

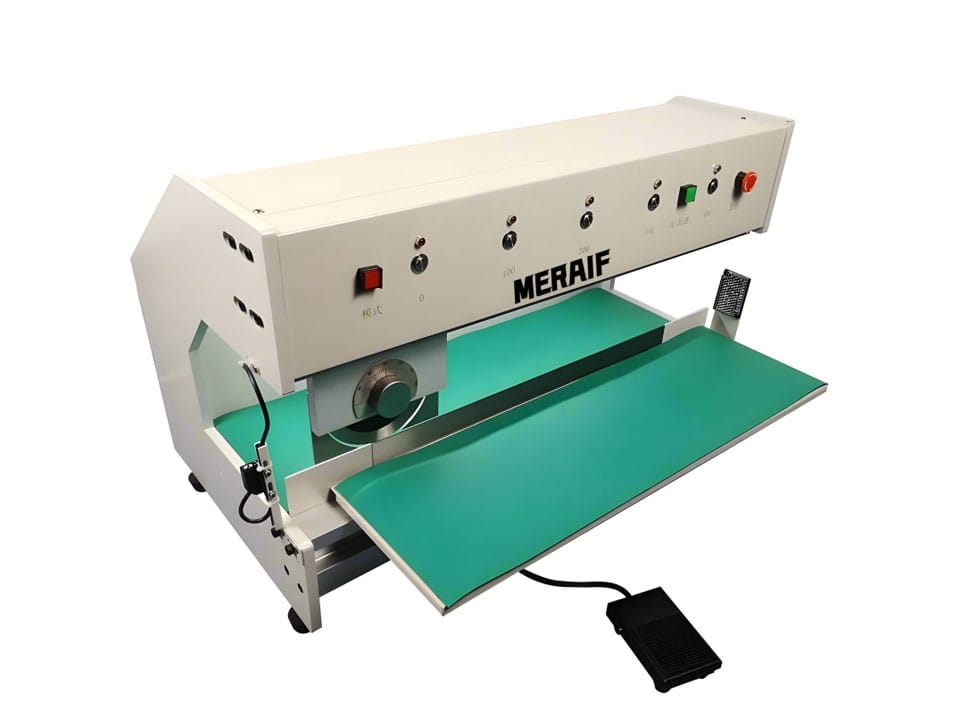

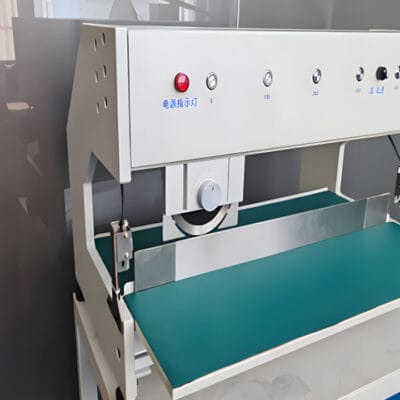

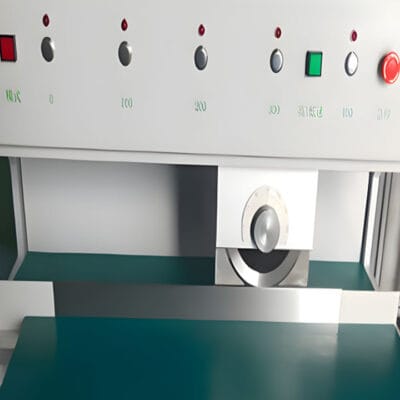

| Model | MF-202 (related to MF-Q202 series) |
| Type | Semi-automatic V-groove PCB separator |
| Application | PCB depaneling and cutting |
| Cutting Method | V-groove separation |
| PCB Thickness | 0.6 mm – 3.5 mm |
| Max PCB Length | Up to 330 mm (customizable) |
| Cutting Speed | 0–500 mm/s adjustable |
| Blade Material | High-speed steel / Tungsten steel |
| Blade Lifespan | Approx. 500,000 cuts (depending on PCB material & thickness) |
| Stress on PCB | Very low, prevents micro-cracks and solder joint damage |
| Operation | Semi-automatic with safety guard |
| Control System | PLC-based, easy-to-operate interface |
| Dimensions | 720 × 300 × 400 mm |
| Weight | ~60 kg |
| Power Supply | AC 110–220V, 50/60 Hz |
| Suitable Industry | Electronics manufacturing, SMT assembly, LED boards, mobile devices |
| Note | Not to be confused with Massey Ferguson MF-202 tractor manuals |
