| Parameter | Value |
|---|---|
| Model | MF-530 |
| Cleaning method | Ultrasonic + spray-in-air |
| Ultrasonic frequency | 40 kHz (68/80 kHz optional) |
| Spray pressure | 0.2–0.5 MPa |
| Wash/rinse tank capacity | 80 L / 80 L |
| Filtration | Dual stage 5 μm + 1 μm |
| Chemistry | Aqueous (DI water + saponifier), low-foaming |
| DI resistivity control | Up to 18 MΩ·cm, closed-loop |
| Max PCB size | 500 × 450 mm |
| Fixture capacity | Up to 3 racks, 25 kg load |
| Typical cycle time | 8–15 min (process-dependent) |
| Temperature range | Wash 20–60 °C; Dry 30–90 °C |
| Drying | HEPA hot-air; optional vacuum assist |
| Control/HMI | 10-inch touch panel, recipes, alarms |
| Interfaces | SMEMA, Ethernet, MES ready |
| Power supply | AC 380–415 V, 50/60 Hz, 3-phase |
| Total power | 18 kW (max) |
| Air supply | 0.5–0.7 MPa, ≥200 L/min |
| Water usage | <10 L/cycle (closed-loop recovery) |
| Noise level | ≤75 dB(A) |
| Safety | Door interlock, leak detection, over-temp cutoff |
| Dimensions (L×W×H) | 1800 × 1100 × 1600 mm |
| Net weight | ~850 kg |
| Options | Inline conveyor, auto chemical dosing, barcode ID |

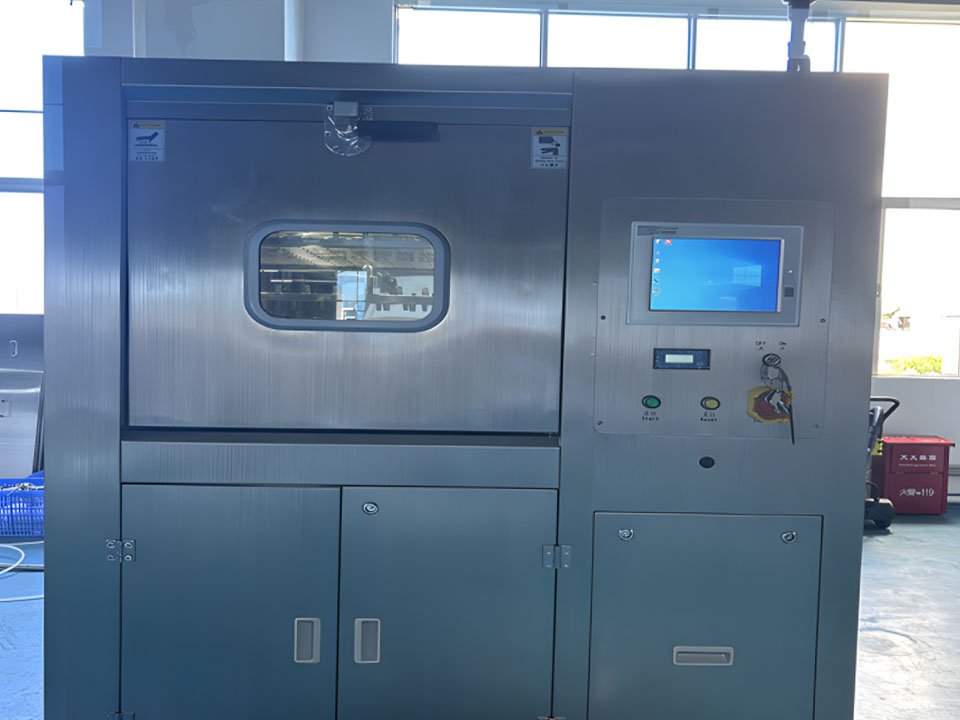

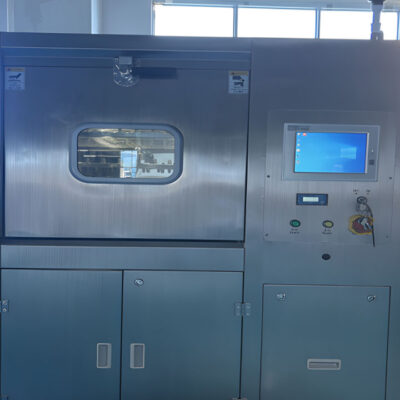

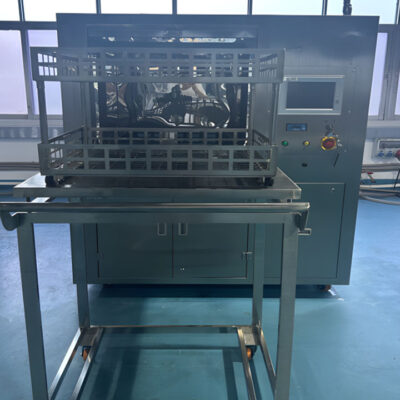

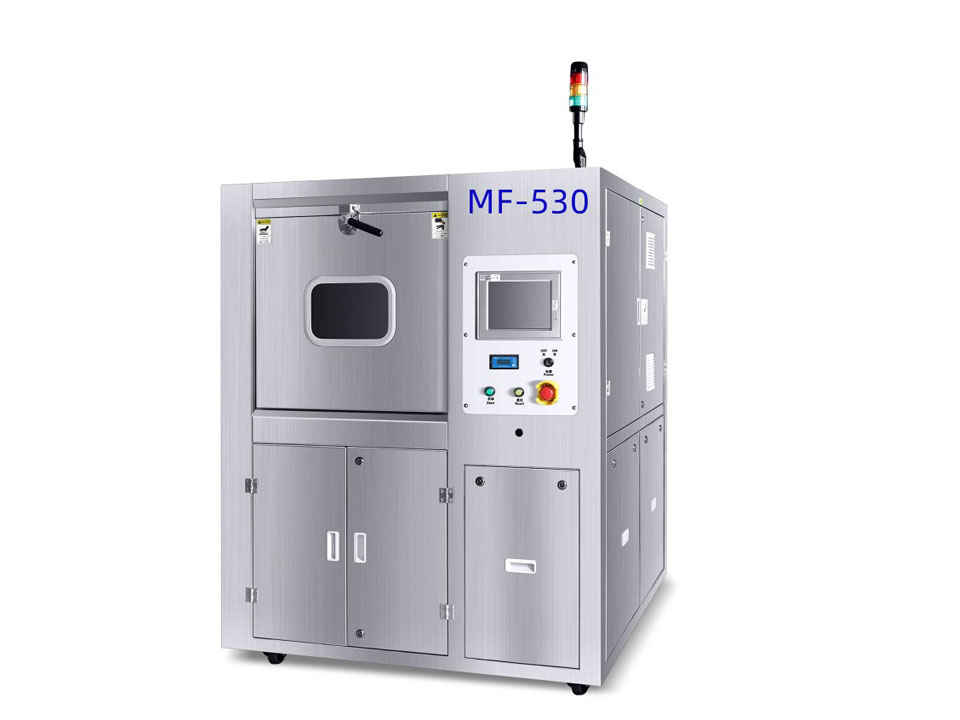

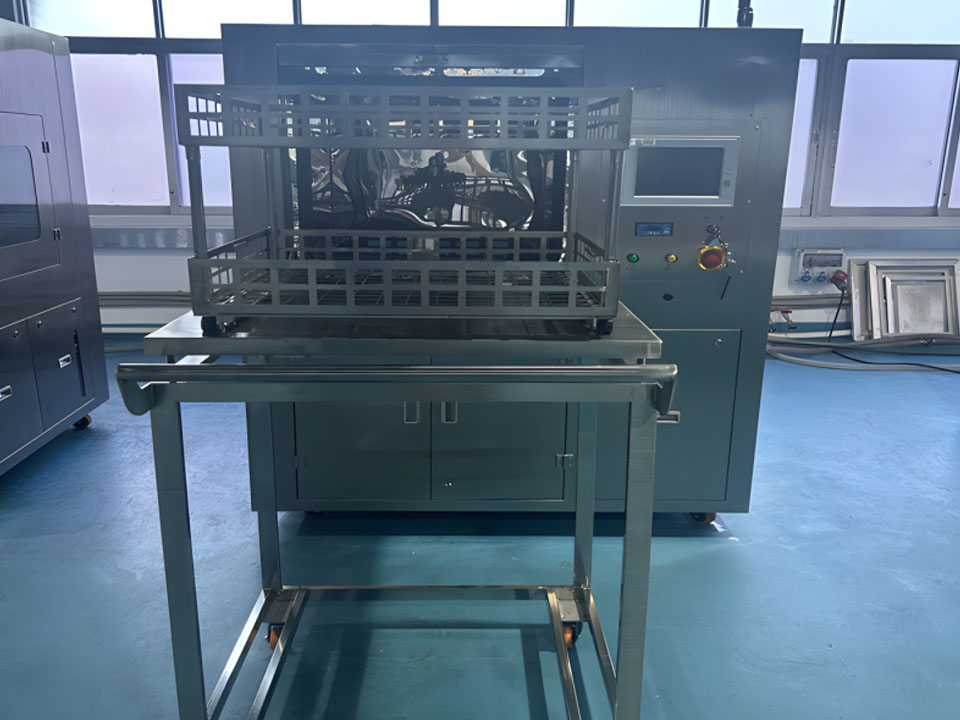

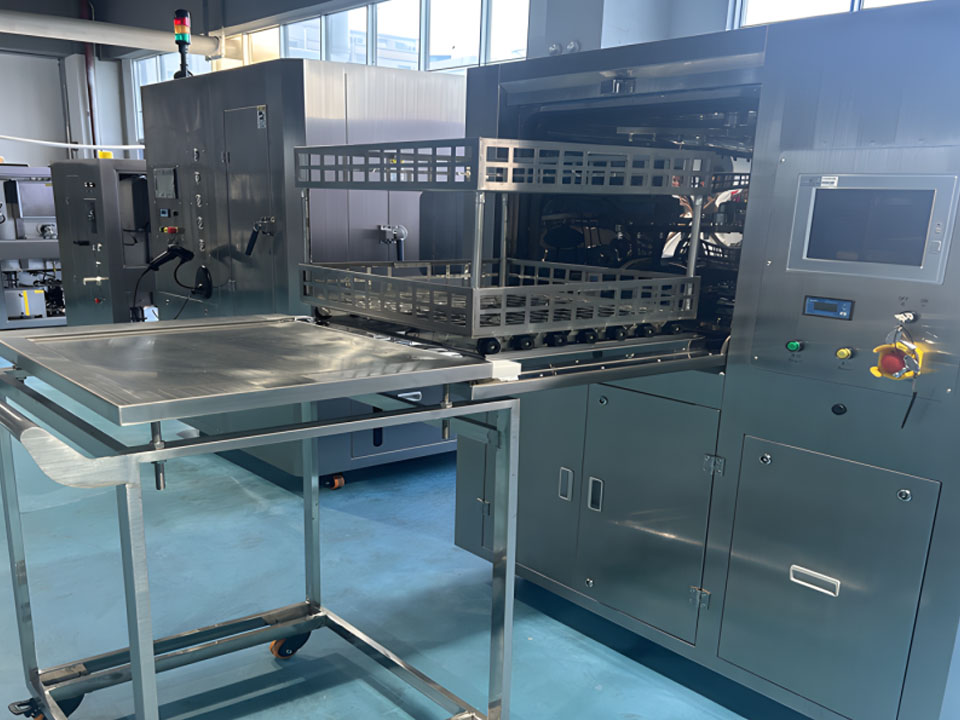

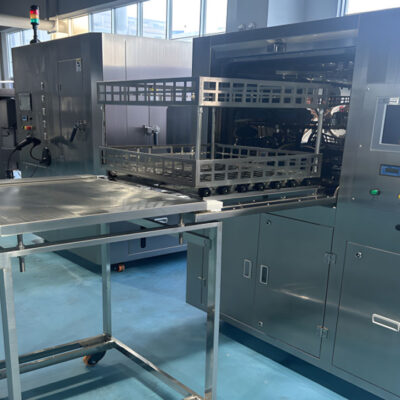

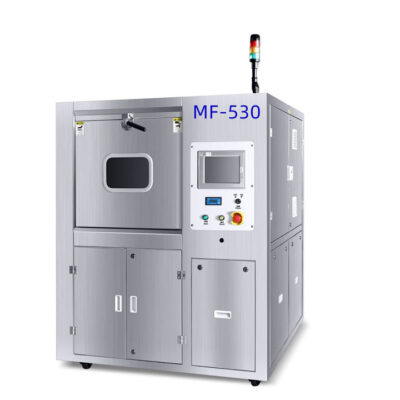

MF-530 PCBA Cleaning Machine Manufacturer High-Efficiency
MF-530 delivers fast, reliable PCBA cleaning for high-mix SMT lines. Ultrasonic + high pressure spray remove flux, solder paste, and residues. Closed-loop DI water, precise temperature control, and HEPA air drying ensure repeatable cleanliness and quick cycle times for quality yields shift to shift.
