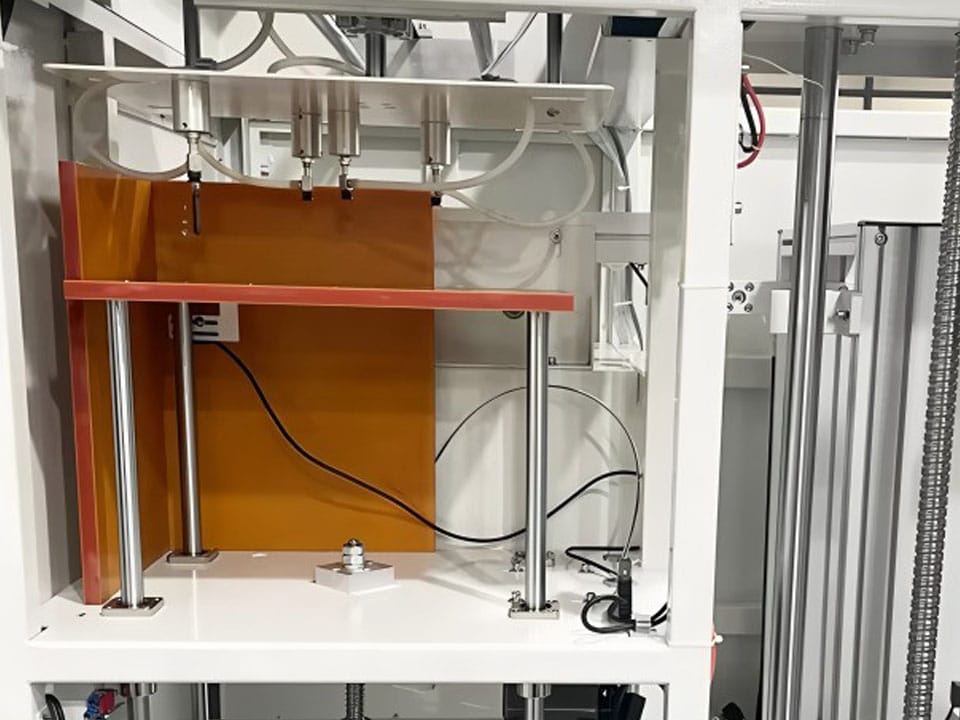

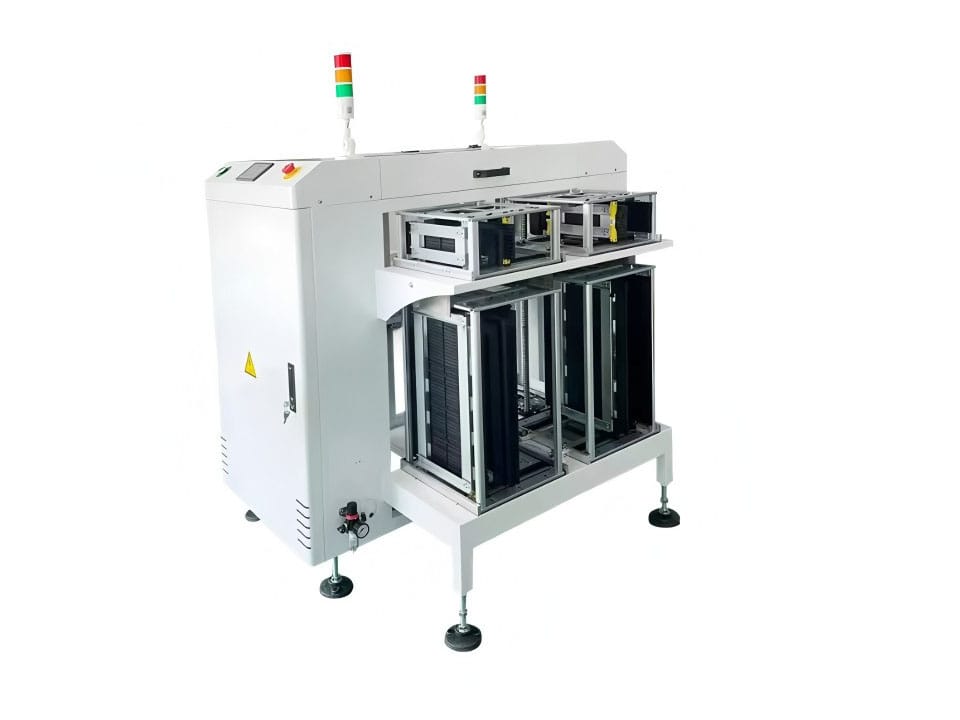

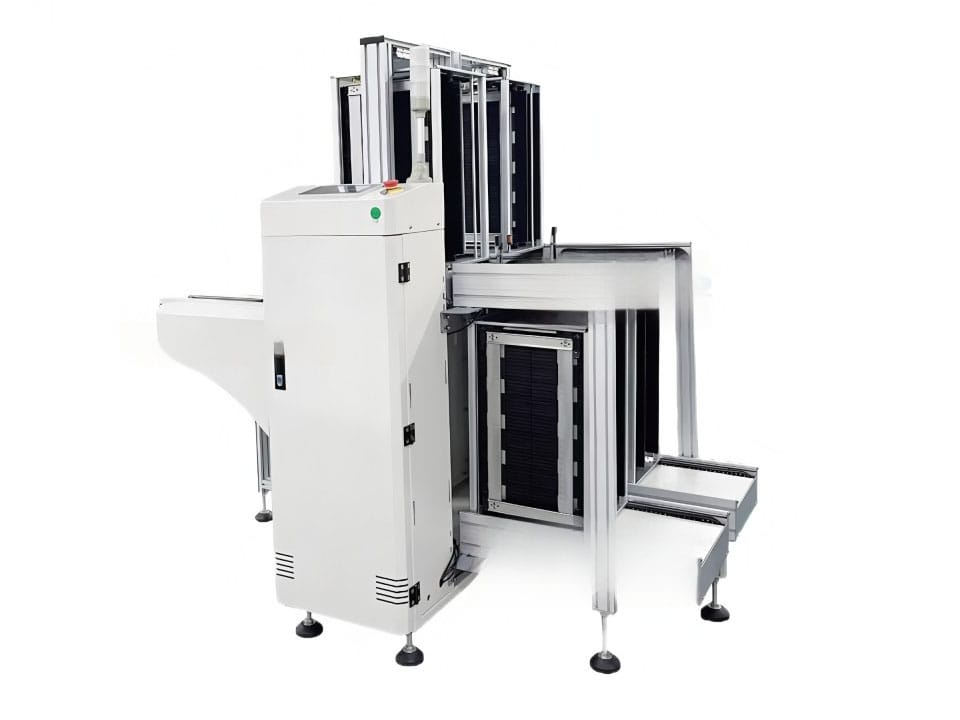

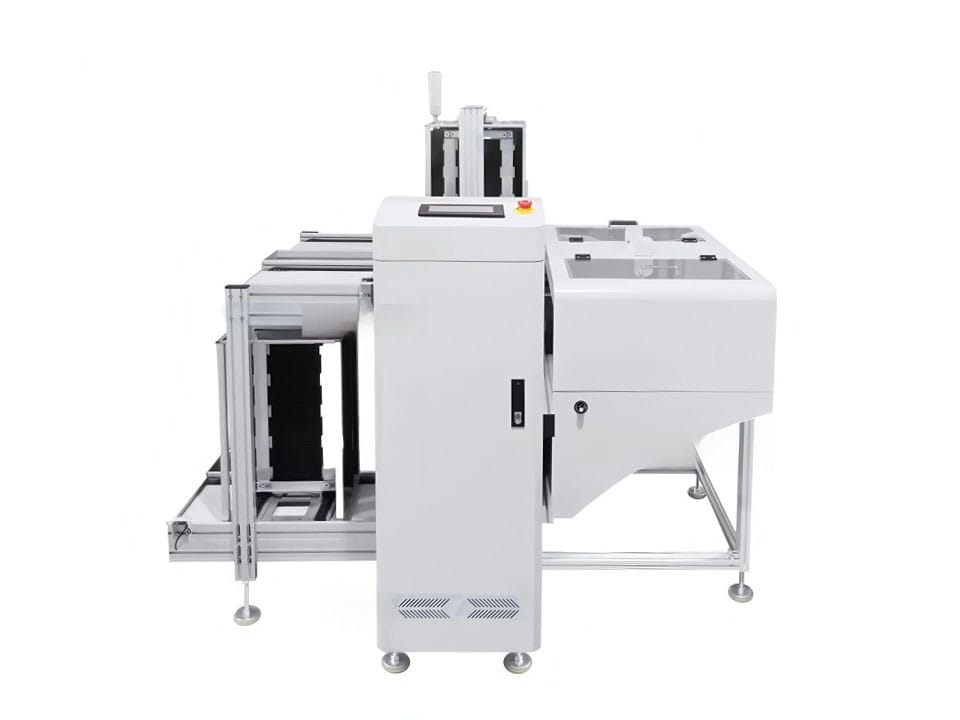

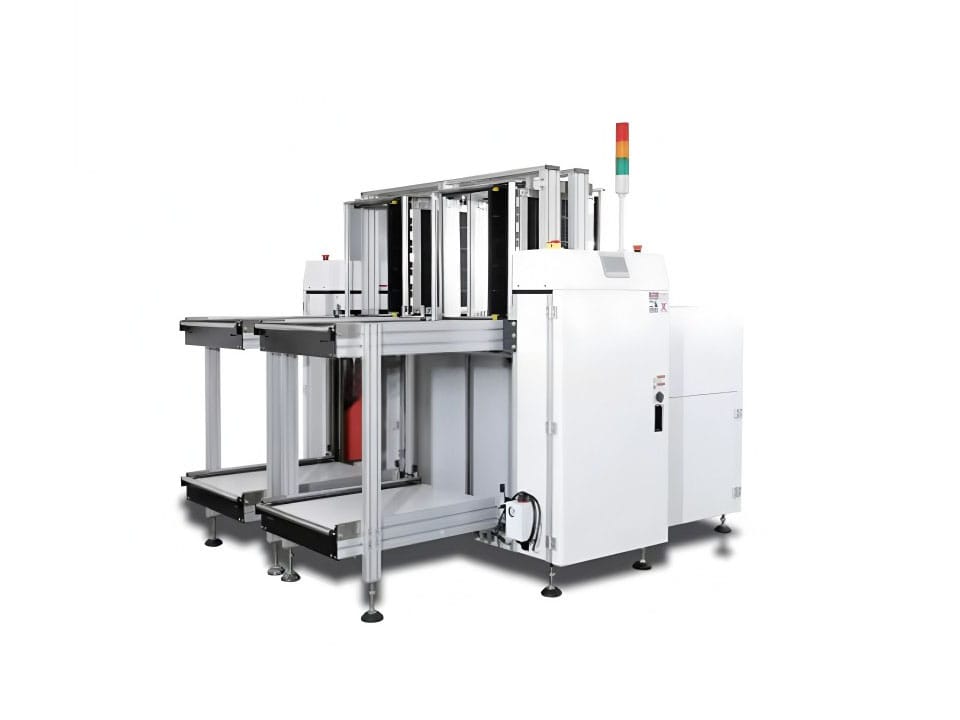

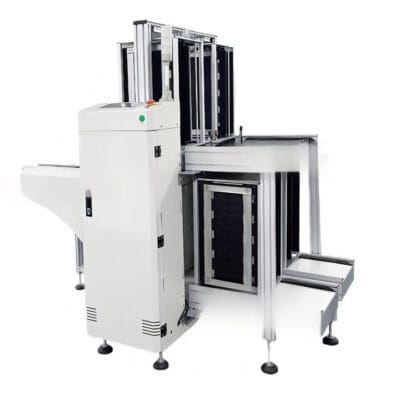

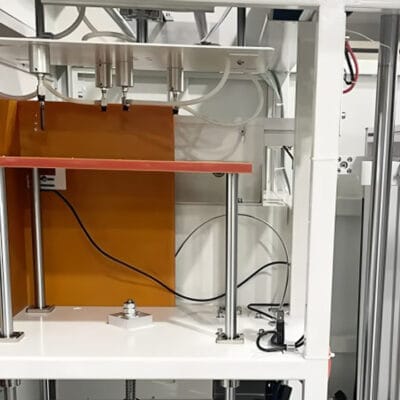

Features
- Robust and stable design with PLC control system
- Compatible with SMEMA interfaces
- Automatic NG/OK PCB separation after AOI inspection
- Man-machine interface control panel for easier operation
Specifications
- Function: Separates NG boards from OK boards after AOI signal
- Cycle Time (Upper Time): About 6 seconds
- Container Replacement Time: About 30 seconds
- Power Supply: 100–230V AC (user specified), single phase, max 300 VA
- Air Supply: 4–6 bar, max 30 L/min
- Transfer Height: 900 ± 20 mm (or user specified)
- Transfer Direction: Left → Right or Right → Left
- PCB Thickness: Minimum 0.6 mm
- Container Number: Upper conveyor: 1, Lower conveyor: 2 (user specified)
- Interval Choice: 10 mm, 20 mm, 30 mm, 40 mm
Model Variants
| Model | PCB Size (L×W, mm) | Overall Dimensions (L×W×H, mm) | Container Size (L×W×H, mm) | Weight (kg) |
|---|---|---|---|---|
| NGOK-250 | 50×50 – 350×250 | 1460×1500×1200 | 355×320×565 | 220 |
| NGOK-330 | 50×50 – 460×330 | 1800×1600×1200 | 460×400×565 | 365 |
| NGOK-390 | 50×50 – 530×390 | 2170×1700×1200 | 535×460×570 | 340 |
| NGOK-460 | 50×50 – 530×460 | 2170×1750×1200 | 535×530×570 | 380 |
