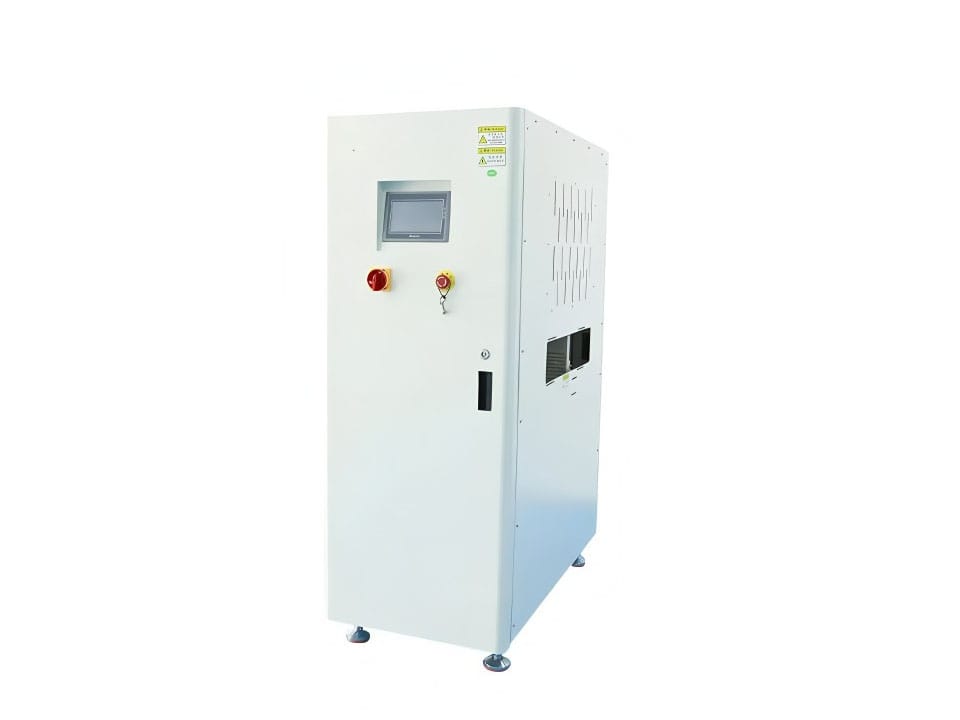

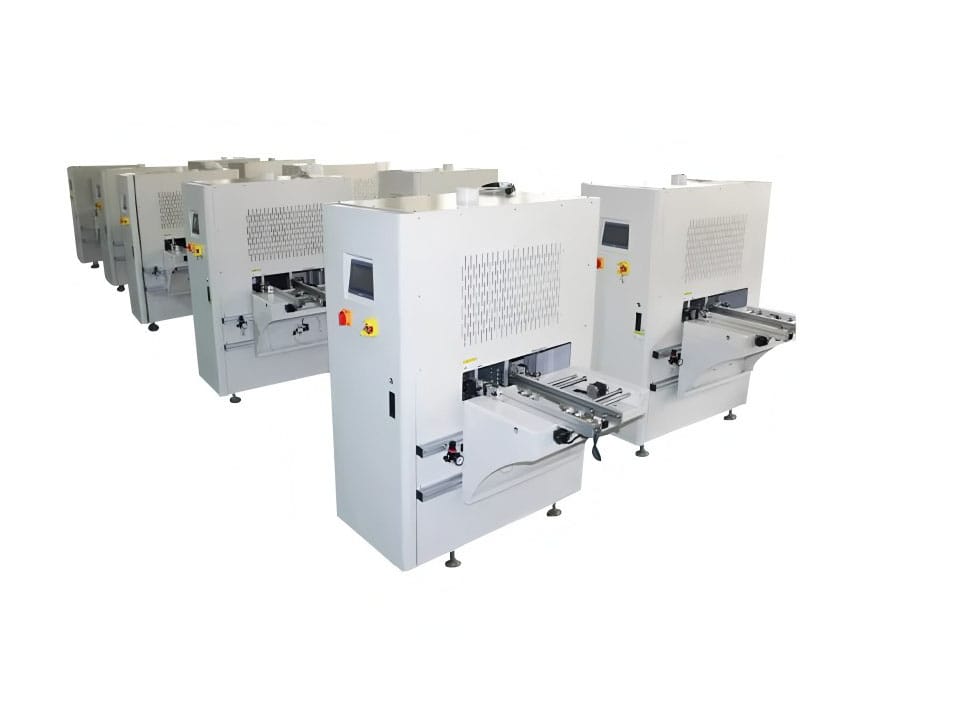

Features
- Robust and stable design with PLC control system
- Compatible with SMEMA interfaces
- Cushioning and deceleration design for stable and precise handling
- Screw adjustment for convenient and accurate PCB width setting
- Man-machine interface control panel for easier operation
- OEM-quality with reliable performance for SMT production lines
Specifications
| Parameter | Value |
|---|---|
| Function | PCB shuttle conveyor / buffer device |
| Application | Direction change or buffering in SMT line |
| Cycle Time | ~6 seconds |
| Power Supply | 100–230V AC (user specified), single phase |
| Electrical Load | Max. 300 VA |
| Transfer Height | 900 ± 20 mm (or user specified) |
| Transfer Direction | Left → Right / Right → Left |
| PCB Thickness | ≥ 0.4 mm |
| Air Pressure & Flow | 4–6 bar, up to 10 L/min |
Mechanical Data
| Parameter | MFML-600 |
|---|---|
| PCB Size (L × W) | 50 × 50 – 350 × 250 mm |
| Overall Dimensions (L×W×H) | 600 × 1500 × 1200 mm |
| Weight | 150 – 350 kg |
