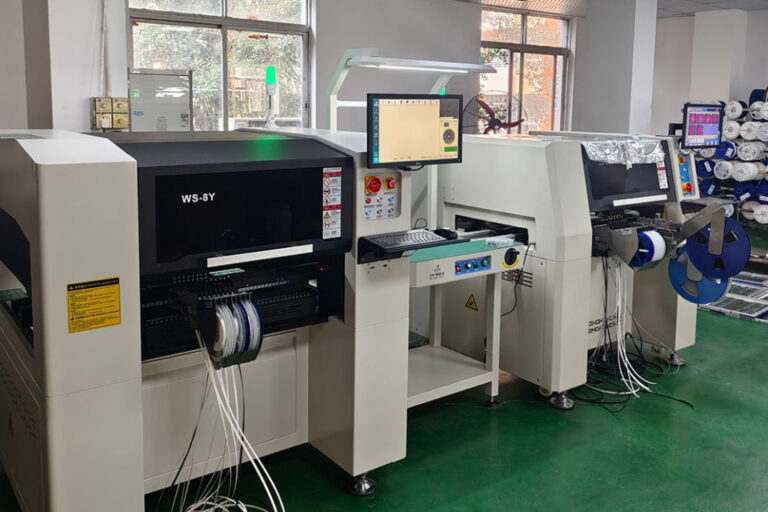

Placement proves absolutely nothing.
A choice and area maker may place every resistor, BGA, QFN, and polarized capacitor properly while the finished board still consists of an open circuit, unsteady power rail, incorrect element worth, damaged firmware, or communication mistake.
There is additionally a vital procedure distinction: PCB functional testing usually occurs after soldering, not immediately after element placement. Up until the board goes through reflow, wave soldering, or careful soldering, its elements are not electrically connected.
Assessment confirms building and construction. Testing verifies behavior.
Why Examination Alone Is Insufficient
AOI, SPI, and X-ray examination can find missing components, polarity mistakes, placement offsets, solder bridges, inadequate paste, and hidden BGA-joint flaws. In-circuit testing can recognize opens, shorts, wrong passive worths, and damaged semiconductor joints.
However a board might pass these checks and still fail in procedure.
Regular functional defects include:
- A regulatory authority that comes to be unstable under load
- Incorrect or damaged firmware
- A crystal that stops working throughout cold start
- A CAN, USB, or Ethernet interface that can not communicate dependably
- An analog network outside its precision requirements
- A recurring BGA joint that opens under heat
- Excessive standby or start-up current
Real recalls reveal why final recognition issues. A 2024 Hyundai recall covering 226,118 automobiles included rearview-camera PCBs with insufficient solder joints that could crack at high temperatures.
A 2023 Ford recall involving 931 F-150 BEVs mapped missing solder joints to a low-volume secondary production line without sufficient procedure controls. The problem can disable cabin home heating and windscreen defrosting.
Economical testing is costly.
How to Evaluate a PCB After Setting up
1. Validate Item Identity
Tape the board serial number, hardware alteration, BOM modification, firmware version, fixture ID, test-program variation, date, and station identification.
Without alteration control, a board may fall short due to the fact that the incorrect limitations were filled– or pass versus an outdated requirements.
2. Run Unpowered Checks
Prior to using power, action resistance between major supply rails and ground. Confirm adapter positioning, fuse connection, polarity-sensitive circuits, seclusion barriers, and most likely short-circuit locations.
Never link an unproven board straight to an unrestricted power supply.
3. Apply Current-Limited Power
Power the board through a controlled series and monitor startup, steady-state, and sleep present.
The examination needs to find:
- Extreme inrush existing
- Inaccurate rail sequencing
- Brownout-reset cycling
- Regulatory authority current limiting
- Irregular standby intake
- Mistakes triggered only after firmware begins
4. Verify Bed Rails, Clocks, and Reset
Step every significant supply rail at the lots instead of only at the component port. Confirm clock frequency, reset timing, power-good signals, referral voltages, guard dog procedure, and boot-mode status.
Videotape actual values. “Voltage OK” is weak proof.
5. Program and Validate Firmware
Programs needs to validate tool identity, firmware checksum, bootloader variation, safety settings, calibration data, and last readback.
The board needs to after that boot and implement the intended firmware. Successful programs alone does not verify correct procedure.
6. Exercise User Interfaces and Outcomes
Check the user interfaces required by the product, consisting of:
- UART, SPI, I ² C, USB, Ethernet, CANISTER, LIN, or RS-485
- Relays, MOSFET outputs, and motor chauffeurs
- Sensors, encoders, buttons, buttons, LEDs, and displays
- Analog inputs, PWM outcomes, and safety and security interlocks
Loopback screening serves, however it might not reproduce wire loading, termination, adapter resistance, or genuine protocol problems.
7. Examination Under Agent Tons
A power result must be evaluated near its operating tons. Communication ports need right termination. Motor motorists require representative inductive loads.
No-load testing often conceals voltage decrease, thermal problems, unstable regulation, and weak solder links.
8. Shop Measurements
Save measured voltage, existing, frequency, timing, communication, and calibration worths– not only pass/fail outcomes.
A 2024 University of Groningen PCBA research examined concerning 62,600 validated problems, including placement, termination, and component failings. Its predictive version reduced mean absolute mistake from 63.44 DPMO to 28.82 DPMO.
A different 2023 PCB production study analyzed solder-paste information from six million pins throughout 15,387 PCBs. The message is clear: organized test data can expose procedure drift prior to fixed limitations start denying boards.
PCB Screening Approaches Compared
| Method | Detects Well | Typical Limitations |
|---|---|---|
| SPI | Paste volume, elevation, area, and offset | Can not validate soldering or circuit function |
| Select and Position Examination | Presence, polarity, positioning, positioning | Can not confirm electric habits |
| AOI | Visible solder and element problems | Restricted coverage of concealed joints and firmware |
| X-ray | BGA joints, gaps, hidden connections | Can not check software application or loaded efficiency |
| Flying Probe | Opens, shorts, passive values | Slower at high production volumes |
| In-Circuit Testing | Element worths, joints, opens up, shorts | Limited system-level recognition |
| Practical Evaluating | Boot, interfaces, firmware, power, outcomes | May supply weak fault localization |
| Environmental Evaluating | Warm, vibration, humidity, and aging failings | Higher time and tools price |
These methods are corresponding. AOI, X-ray, ICT, and FCT ought to not be dealt with as competitors.
Selecting the Right Examination Approach
For models and often transforming products, flying probe testing and modular functional fixtures lower tooling costs. A model and small-batch SMT line must focus on adaptable scripts and obtainable examination points.
Stable, high-volume items commonly warrant bed-of-nails ICT, automated FCT, barcode scanning, automated test selection, and fixture-life surveillance. These controls are specifically important in a high-speed mass-production line.
The proper expense computation is not just the fixture cost. It must consist of test time, labor, area returns, medical diagnosis, shipping, repair, downtime, and reputational damage.
Layout the PCB for Testing
Examination insurance coverage begins throughout schematic and PCB style.
Give easily accessible test points for:
- Ground and all major power rails
- Reset and shows signals
- Communication buses
- Analog references
- Risky inputs and outputs
- Current dimension points
Prevent positioning examination pads beneath shields, adapters, heatsinks, or inaccessible mechanical frameworks. Firmware needs to likewise include self-test settings, analysis codes, tool identification, calibration checks, and controlled outcome functions.
These decisions ought to create component of broader process-quality preparation. Including testability after production launch is slower and much more costly.
Set Meaningful Test Boundary
Test restrictions need to come from style specifications, resistance analysis, dimension unpredictability, and procedure capability– not from observing a few models.
For example, if a 5 V rail must remain between 4.85 V and 5.15 V, fixture unpredictability and cable television losses should be included when setting manufacturing limitations.
Caution restrictions are likewise beneficial. A rail drifting from 5.02 V to 4.91 V might still pass, however the pattern can show a creating process issue.
Verify the Entire Production Line
Practical screening can not fix an uncontrolled upstream process.
If paste printing, feeder confirmation, placement improvement, reflow profiling, dampness control, or ESD security is unpredictable, FCT ends up being an arranging station rather than a quality-control system.
The best manufacturing arrangement web links SPI, positioning, AOI, X-ray, ICT, FCT, fixing, and field-return documents to each board identification number. An effectively developed complete SMT line need to therefore operate as an incorporated high quality and information system.
Frequently Asked Questions
What is PCB practical screening?
PCB functional screening is a controlled procedure that powers a constructed motherboard, stimulates its inputs, gauges its outputs, and confirms that its electrical circuits, firmware, timing, user interfaces, safety features, and running behavior continue to be within recorded approval limitations under problems that represent its designated application.
It confirms behavior rather than appearance.
Exactly how do you test a PCB after assembly?
Testing a PCB after assembly entails unpowered resistance checks, current-limited start-up, supply-rail and clock confirmation, firmware programming, interface screening, loaded-output dimensions, thermal observation, and automated comparison of taped results versus revision-controlled production limits.
The series needs to reflect the product’s electric risk and planned use.
Is practical testing the same as in-circuit testing?
Practical testing and in-circuit screening offer various functions: ICT checks easily accessible elements and networks for values, opens, shorts, and junction behavior, while useful screening operates the full board and confirms its firmware, interactions, sensors, power stages, and outputs.
ICT generally offers much better mistake localization. FCT offers stronger proof that the board executes its intended feature.
Can AOI change functional screening?
AOI can not replace practical screening because it confirms visible assembly problems such as component visibility, polarity, placement, and solder-joint look yet can not show that firmware, power sequencing, interaction user interfaces, analog networks, or packed outputs run properly.
AOI catches architectural issues early; FCT confirms operation.
What are the best PCB screening approaches?
The best PCB testing approach integrates SPI, placement examination, AOI or X-ray, flying probe or ICT, and application-specific practical screening according to production volume, board complexity, test-point gain access to, product danger, and the monetary repercussions of a run away flaw.
No single method supplies complete coverage.
Stop Delivery Assumptions
A quick placement machine can produce defective boards faster.
Prior to selecting equipment, specify evaluation gateways, electric test insurance coverage, fixtures, cycle time, data retention, acceptance limits, and acceleration guidelines.
For support incorporating placement, examination, soldering, handling, and PCB practical screening, get in touch with the SMT line engineering team with your board dimensions, BOM, needed outcome, and test requirements.
