Nozzle choice decides.
I have watched too many SMT teams spend heavily on placement heads, feeders, vision upgrades, and premium maintenance contracts, then sabotage the whole line by treating the nozzle as a disposable afterthought, which is absurd because the nozzle is the physical point where theory meets a real component, a real board, and a real defect bill. Why are we still pretending a generic pickup tool can carry both a fine-pitch BGA and an awkward, top-heavy odd-form part with equal control?
Here is the hard truth: most placement problems blamed on “machine accuracy” are actually grip problems. BGA component handling fails when vacuum stability, contact area, package flatness, and pickup centering drift out of tolerance by small amounts that operators do not notice until AOI starts screaming or yield starts sliding. Odd-shape component handling fails even faster because center of gravity, uneven surfaces, and inconsistent lead geometry punish lazy nozzle selection.
The market is telling you the same story, just in bigger numbers. In February 2024, IPC said 59% of electronics manufacturers were seeing higher labor costs and 45% were seeing higher material costs, which means rework, dropped parts, and avoidable nozzle mismatch are getting more expensive, not less. Read that again: every bad pickup now costs more to diagnose, more to re-run, and more to explain to a customer. According to IPC’s January 2024 industry update, the pressure is already baked into the economics. (electronics.org)
And the packaging side is moving in the same direction. Reuters reported in March 2024 that TSMC was considering advanced packaging capacity in Japan and specifically cited CoWoS, while demand for advanced semiconductor packaging was described as having surged with the AI boom. A few months later, Reuters reported that the U.S. planned to award SK Hynix up to $450 million for an advanced packaging plant and R&D facility in Indiana, tied to a roughly $3.87 billion investment. When packaging density rises, pickup errors stop being “minor handling issues” and become yield killers with board-level consequences. See Reuters on TSMC’s Japan packaging plans and Reuters on SK Hynix’s Indiana packaging investment. (Reuters)
I’ll say something unpopular. “Best nozzles for BGA components” is usually the wrong question. The right question is this: what nozzle geometry, wall thickness, vacuum profile, compliance, and contact surface give this exact package stable pickup at this exact acceleration, on this exact machine, with this exact feeder and board support condition?
That is where specialized nozzles for SMT stop being accessories and start being process controls.
For BGA pick and place nozzles, I care about three things first: centered contact, stable vacuum, and minimal package stress. A nozzle that grabs too aggressively can distort pickup behavior on thin or slightly warped packages; a nozzle that grabs too broadly can create false confidence by lifting the package while quietly shifting its true center; a nozzle that is too small can raise drop risk during transfer. And no, vision cannot always save you after a poor mechanical pickup.
For odd-shape parts, the mistake is different. Operators love to “make it work” with the nearest available nozzle, then compensate with slower speed, lower acceleration, or manual touch-up. That is not process engineering. That is debt. Connectors, shields, tall capacitors, relays, switches, and asymmetrical housings need nozzle faces that match their usable contact zone, not the zone that merely looks flat from above. If you are running mixed SMT lines or building broader turnkey SMT line solutions, nozzle strategy has to be specified with the same seriousness as feeder count and head configuration.
A lot of people still underestimate warpage. That is a mistake. A 2024 review on warpage measurement metrologies said the advanced packaging industry shows strong demand for warpage measurement because warpage has a direct effect on yield and reliability. That aligns with what line engineers see in practice: if the package moves, flexes, or sits imperfectly during pickup and placement, your downstream process is already compromised before solder melts. The abstract for this 2024 review on warpage metrology is worth your time.
So what does smart surface mount component handling look like in the real world? It looks boring. That is the point. Stable pickup. Predictable release. Low transfer loss. Clean centering. Repeatable vision confirmation. Fewer operator heroics. More boring boards. More good boards.
If your team is still choosing nozzles by habit, start with your SMT nozzle options and tie them back to package families instead of machine folklore. Then check whether your broader pick-and-place machine setup is actually configured for the package mix you are claiming to support. After that, tighten your process quality controls so the nozzle decision is validated by offset, drop, skew, and post-placement inspection data rather than operator confidence.
Where lines usually go wrong
The usual failure pattern is embarrassingly consistent. A factory introduces a new BGA package, keeps the old nozzle because “the pickup looks fine,” slows the head slightly to calm down drop events, then starts seeing intermittent skew, edge misregistration, or reflow escapes that get blamed on paste, board flatness, or vision tuning. Sound familiar?
Then odd-form parts arrive. Now the same line has one machine trying to behave like three: a high-speed chip shooter, a precision BGA placer, and a flexible odd-shape handler. It can do that, sometimes, but only if the nozzle library, vacuum recipe, and inspection loop are built for that reality. If they are not, you do not have automated BGA placement solutions. You have a fragile workaround.
What specialized nozzles actually need to do
| Component type | What usually goes wrong | Nozzle requirement | Machine tactic | Best inspection check |
|---|---|---|---|---|
| Standard BGA | Micro-shift during transfer or release | Centered vacuum face with stable seal and low package stress | Moderate acceleration, verified pickup height, tight release timing | Pre-reflow placement offset + post-reflow AOI/X-ray |
| Thin or large-body BGA | Package flex or inconsistent seating | Contact area matched to package stiffness and flat pickup zone | Board support optimization, slower vertical motion, warpage watch | X-ray for hidden joint integrity |
| Connector / odd-form plastic body | Tilt, rotation, uneven seating | Broad, shape-matched contact with balanced grip | Lower jerk, center-of-gravity correction | 3D AOI or height check |
| Shield can / metal cover | Suction instability on reflective or uneven surface | High-seal face, sometimes custom contact geometry | Vacuum verification before transfer | Presence + coplanarity check |
| Tall electrolytic / relay | Drop risk from mass and height | Stronger vacuum retention with anti-tilt geometry | Reduced head acceleration and path smoothing | Post-placement height and polarity check |
| Tactile switch / irregular top surface | Partial pickup and off-center release | Small-area precision face or dedicated custom nozzle | Vision-assisted centering, slower release | Functional orientation and centroid offset |
That table is not theory. It is what shops learn after they lose enough time to stop arguing with physics.

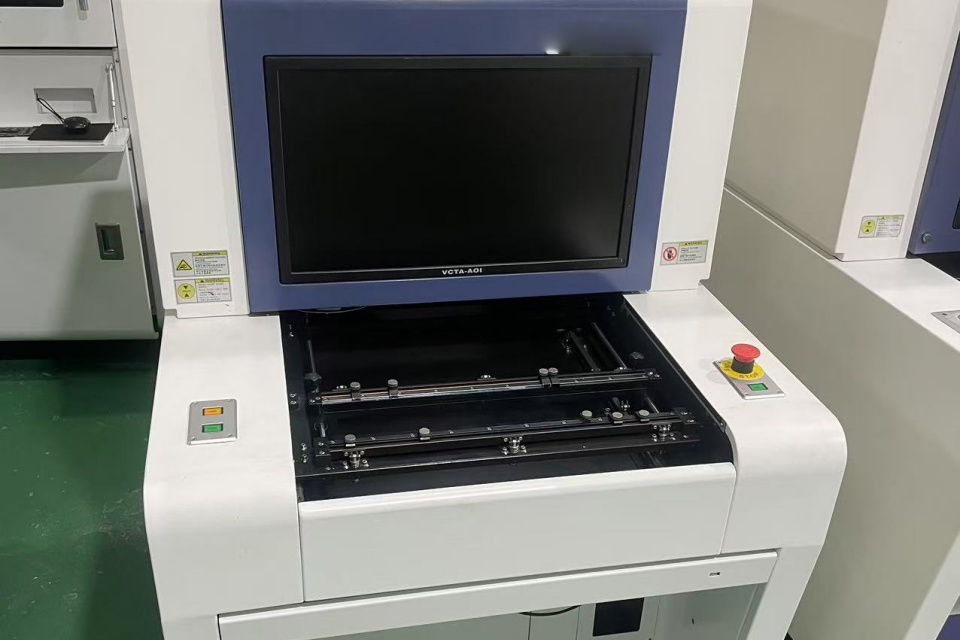

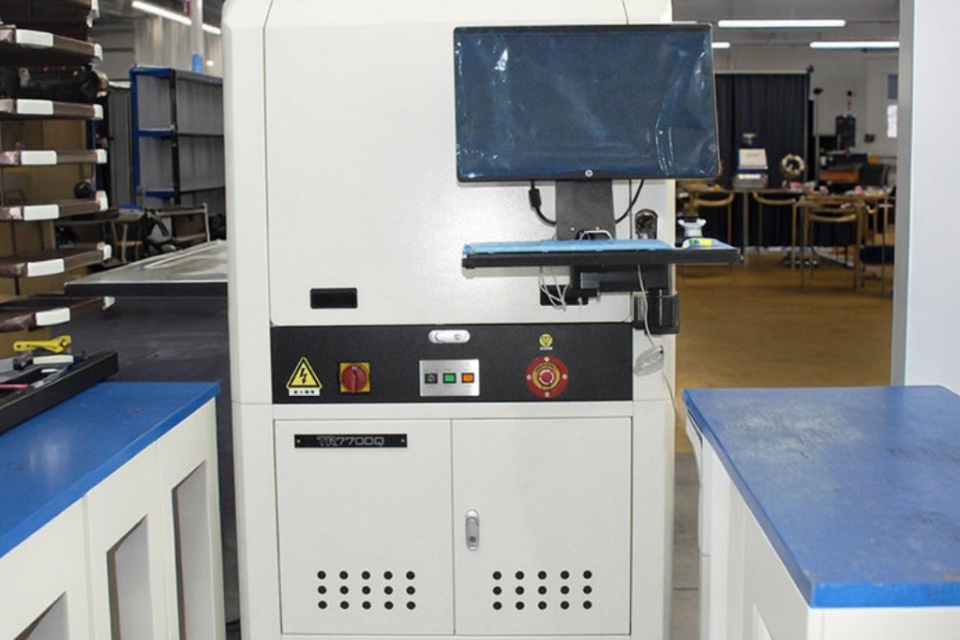

Why inspection now belongs inside the handling discussion
This part matters.
A 2024 study in Electronics described a real-time inline inspection method that uses existing pick-and-place infrastructure to capture images during assembly, with reported accuracy above 99.5%, processing speeds of about 5 milliseconds per component, and a training base of more than one billion components. My takeaway is blunt: if modern inspection can see damage, corrosion, counterfeit risk, and structural irregularities that early, there is no excuse for treating nozzle selection as tribal knowledge. Read the 2024 study on AI-driven inline inspection. (MDPI)
In other words, how to handle odd-shape components in SMT is no longer just a mechanical question. It is a data question. The nozzle is not “working” because the part got picked once. It is working because the placement stays centered, the release stays repeatable, AOI stops flagging drift, and defect signatures stop clustering around that package family.
My rule set for BGA and odd-shape handling
I keep it simple.
First, never assign a nozzle by package label alone. “BGA” is not a sufficient engineering description. Body size, warpage behavior, surface condition, mass, ball pitch sensitivity, and package stiffness all matter.
Second, build a package-to-nozzle matrix and keep it current. Not in someone’s head. In a controlled document.
Third, separate “acceptable pickup” from “stable production pickup.” A part that survives ten cycles in setup may still fail at production speed over 20,000 placements.
Fourth, treat odd-shape component handling as its own discipline. The fact that a head can place a part does not mean it should place that part with a standard nozzle.
Fifth, tie nozzle validation to yield data. If one nozzle choice raises skew, drop, or manual touch rate by even a few tenths of a percent on a high-volume line, it is already too expensive.
And yes, if your operators need constant overrides, your nozzle strategy is wrong.
FAQs
What is BGA component handling?
BGA component handling is the controlled pickup, transfer, alignment, placement, and release of ball grid array packages using a nozzle, vacuum system, vision correction, and board support method designed to keep the package stable before reflow and to reduce hidden misalignment, drop events, and solder-joint reliability risk. BGA handling is less about “can the machine pick it” and more about whether the package stays mechanically honest from feeder to board.
Why do odd-shape components need specialized nozzles?
Odd-shape components need specialized nozzles because their mass distribution, top-surface geometry, lead form, and center of gravity often differ sharply from standard SMT passives and ICs, so a generic suction face can create tilt, rotation, unstable vacuum, off-center release, or inconsistent seating on the PCB. That is why odd-form parts punish shortcuts faster than standard chip components do.
What are the best nozzles for BGA components?
The best nozzles for BGA components are the ones whose contact area, seal quality, vacuum stability, and mechanical compliance match the exact package body, flat pickup zone, and transfer dynamics of the specific BGA being placed, rather than the broad category name printed on the traveler. In practice, “best” means lowest drift, lowest drop rate, and most repeatable release in real production data.
How do you handle odd-shape components in SMT?
Handling odd-shape components in SMT means matching each part to a nozzle that fits its usable pickup surface, tuning acceleration and release around its center of gravity, verifying orientation and height with inspection, and separating successful lab pickup from repeatable production placement at line speed. Shops that skip any one of those steps usually end up paying for all of them later.
Can one nozzle handle both BGA and odd-form parts?
One nozzle can sometimes handle both BGA and odd-form parts in low-mix or low-risk conditions, but it is rarely the right long-term production choice because the contact geometry, vacuum behavior, and release demands of those package classes are usually too different to optimize with one compromise tool. “One nozzle for everything” sounds efficient right up until the defect trend says otherwise.
If your line is fighting intermittent pickup, skew, or odd-form instability, stop blaming the machine first. Start with the nozzle library, the vacuum recipe, and the package map. Then, if you want a faster route from theory to a stable line, review the relevant training and after-sales support options or contact the team with your component list, machine model, and current defect pattern.
