| Attribute | Specification |
|---|---|

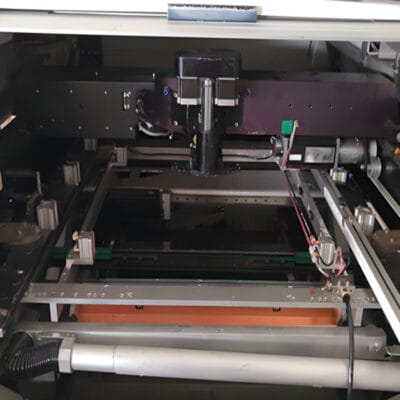

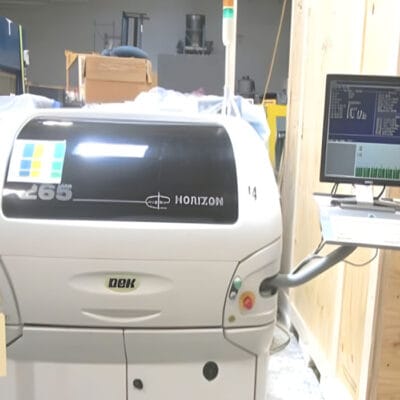

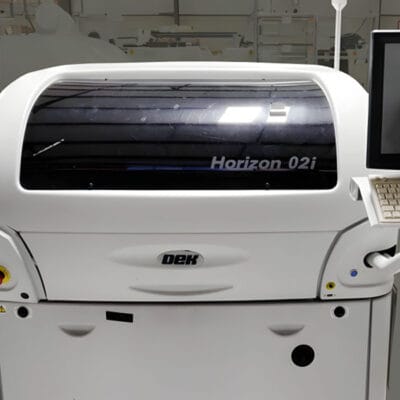

| Product Name | DEK Horizon 02iX Printer |
| Application | SMT solder paste and adhesive screen printing |
| Print Accuracy | ±12.5 μm @ 2 Cpk |
| Print Cycle Time | ≤ 11 seconds (typical) |
| Maximum PCB Size | 510 × 508 mm |
| Minimum PCB Size | 50 × 50 mm |
| PCB Thickness | 0.4 – 6 mm |
| Alignment System | High-resolution vision alignment |
| Conveyor Height | 900 ± 20 mm |
| Stencil Size | Up to 29” × 29” |

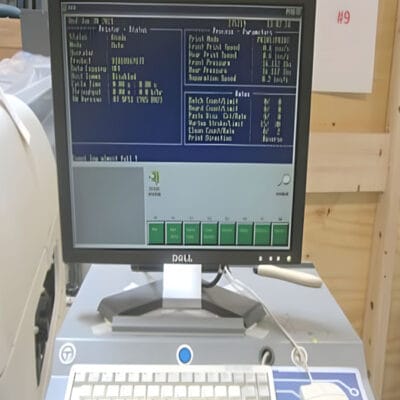

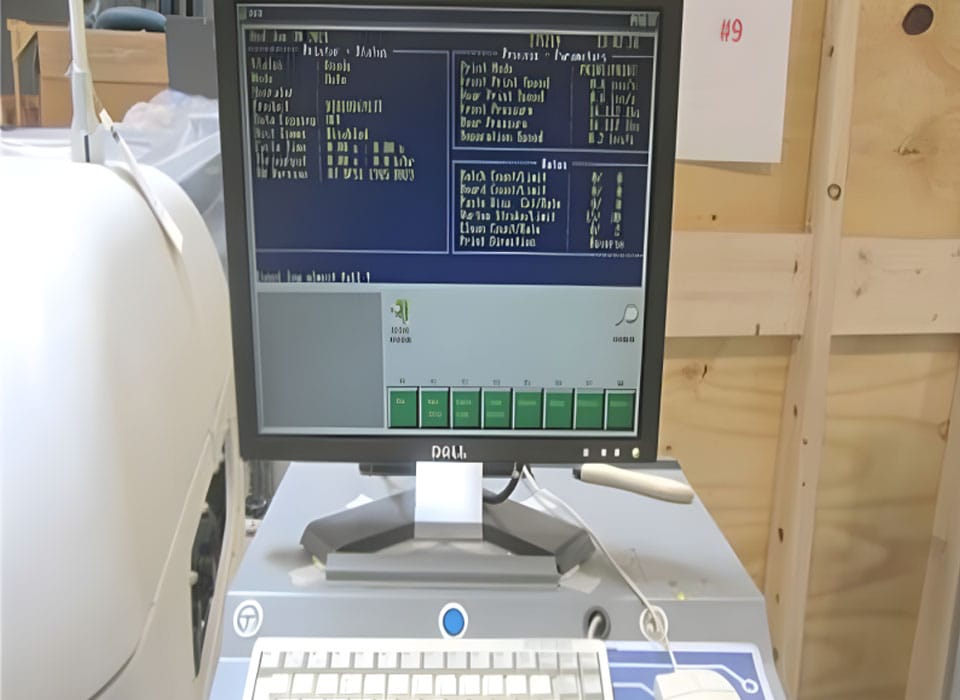

| Control System | Windows-based GUI with touch-screen interface |
| Repeatability | ±2 μm |
| Power Supply | AC 200–230V, 50/60Hz |
| Dimensions (L×W×H) | Approx. 1,500 × 1,400 × 1,500 mm |
| Weight | Approx. 1,200 kg |
| Brand Name | DEK |
| Model | Horizon 02iX |
| Place of Origin | United Kingdom |

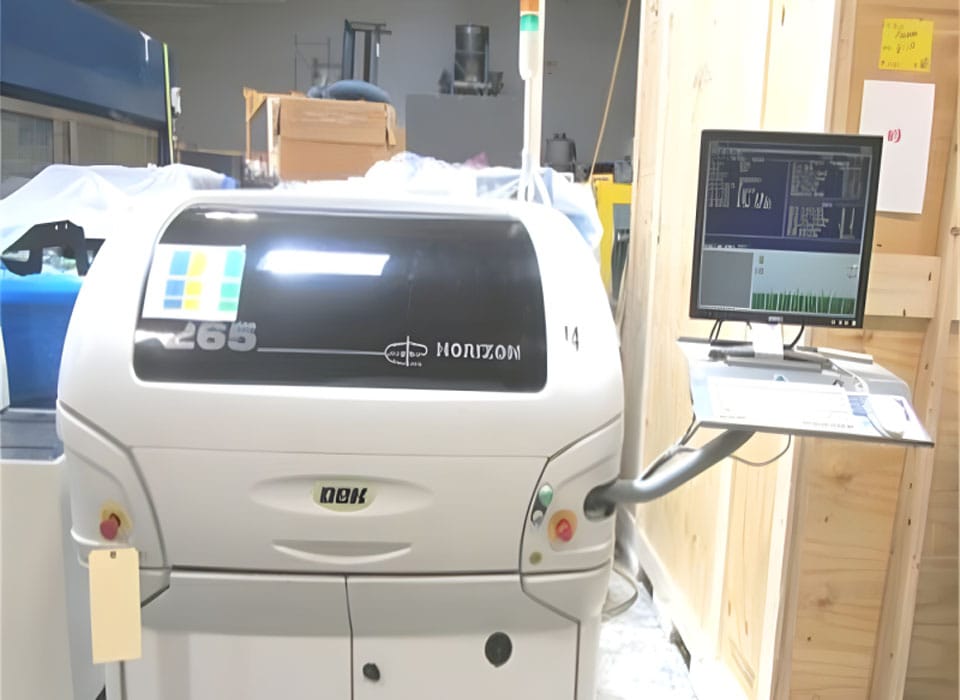

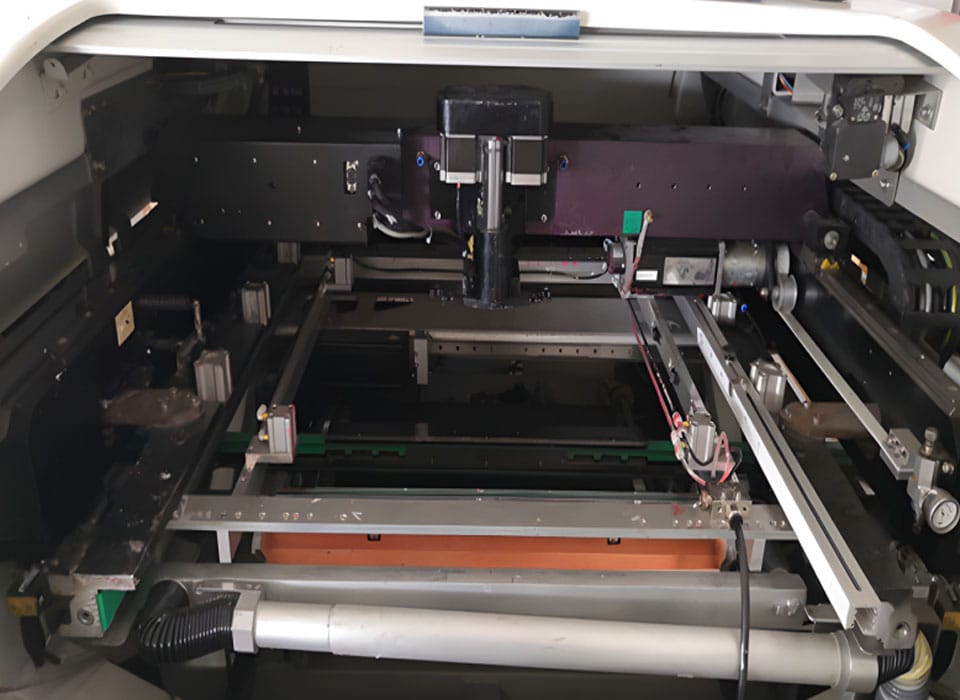

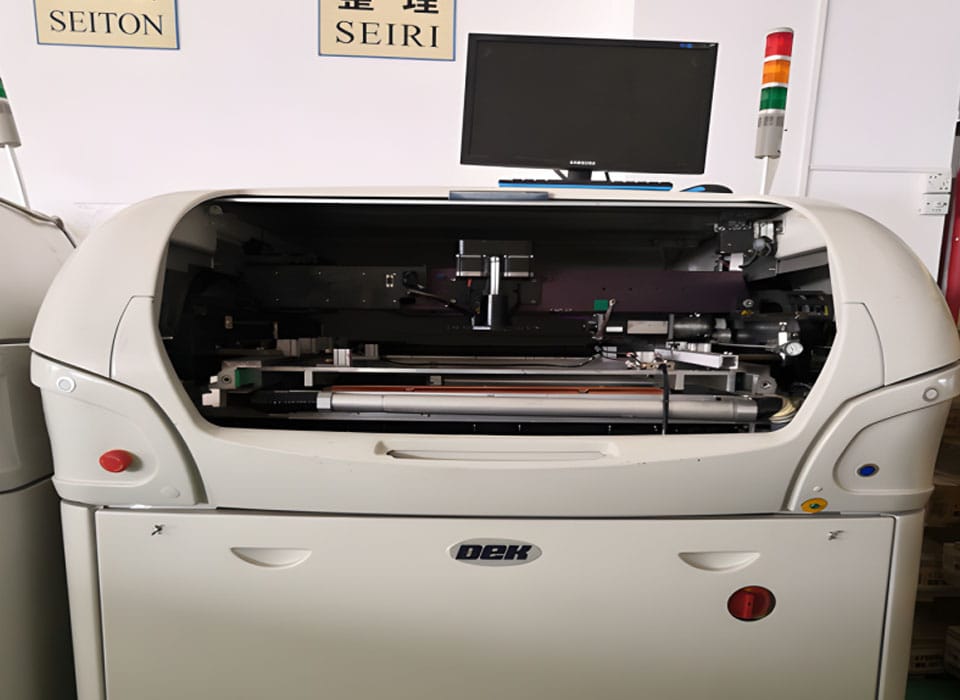

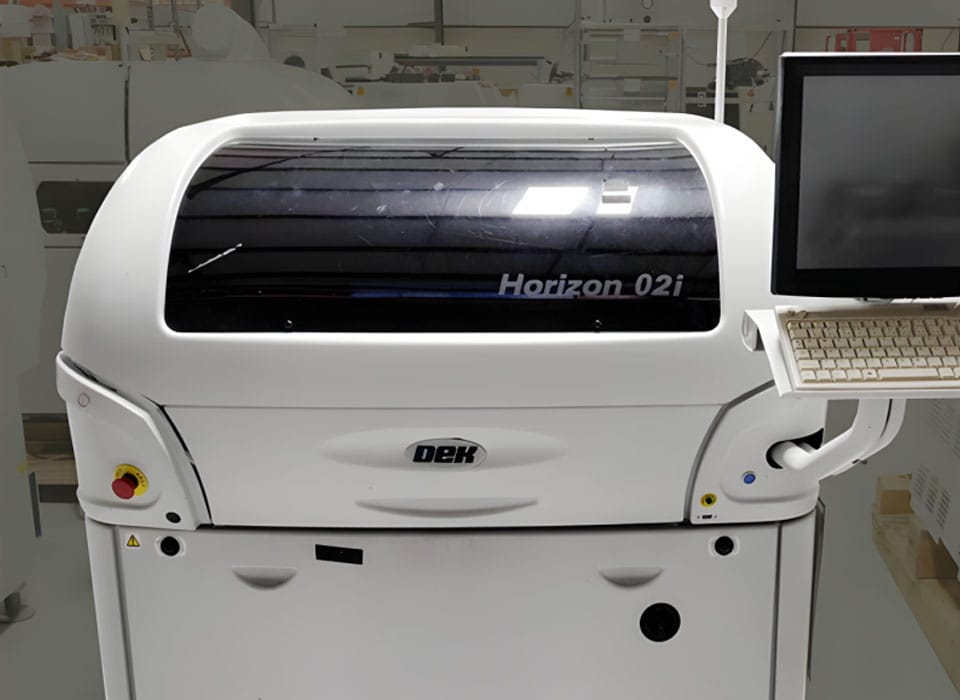

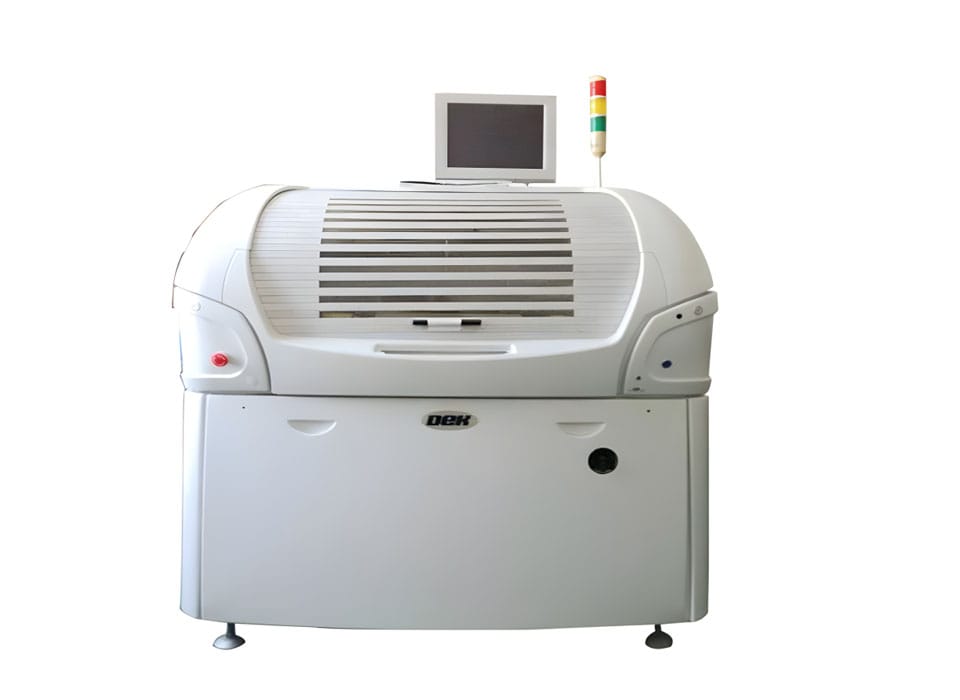

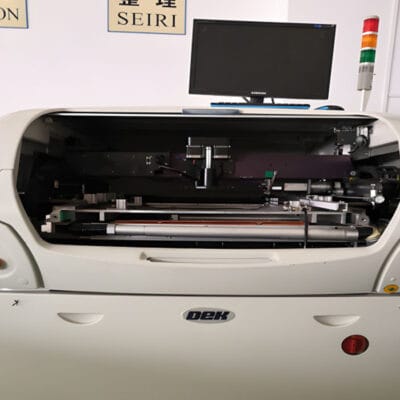

DEK Horizon 02iX Printer High-Performance SMT Manufacturer
DEK Horizon 02iX Printer High-Performance SMT Manufacturer delivers precision screen printing for PCB assembly. Featuring advanced alignment, fast cycle times, and user-friendly controls, it ensures superior paste deposition, high throughput, and consistent quality for demanding electronics production.
