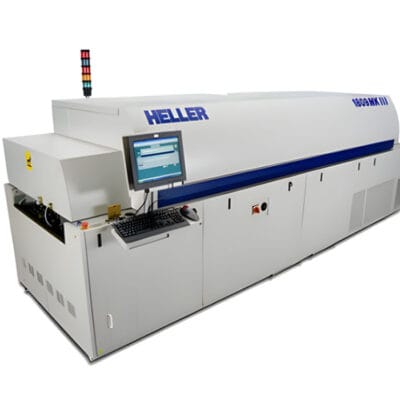

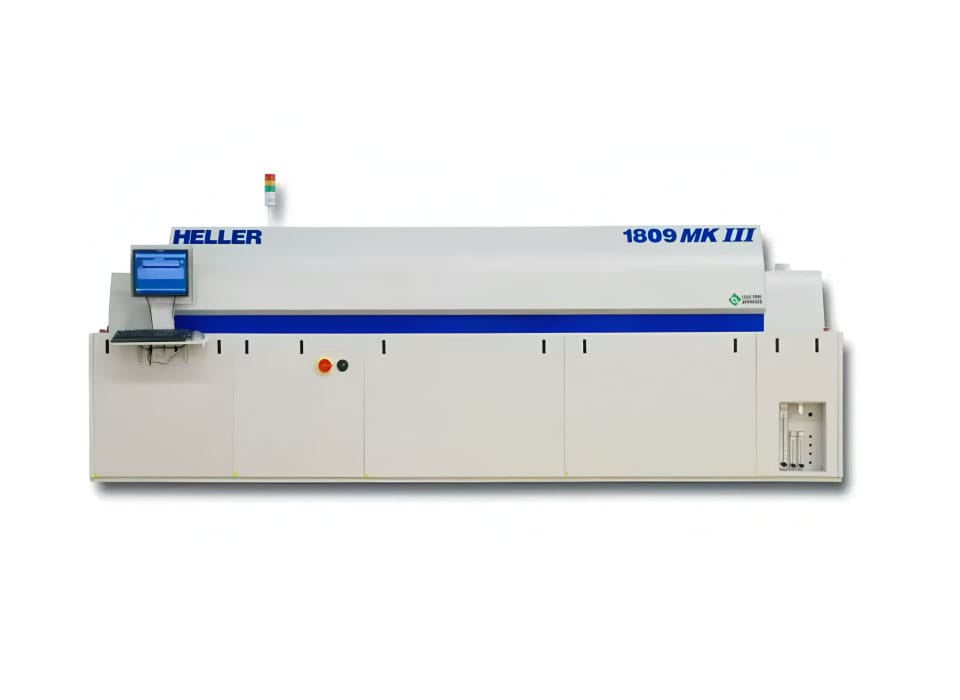

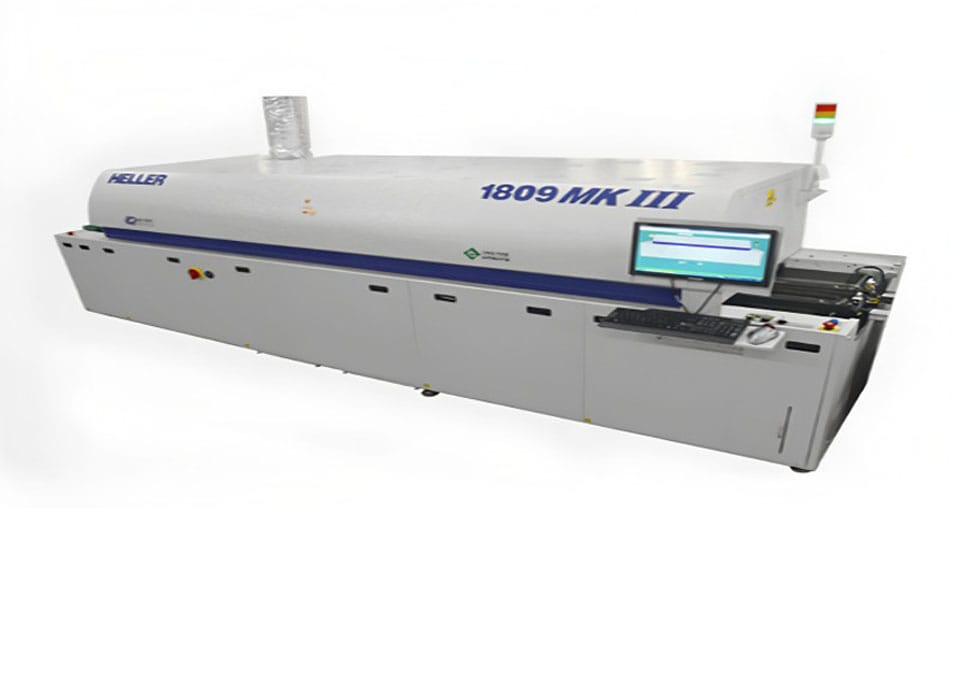

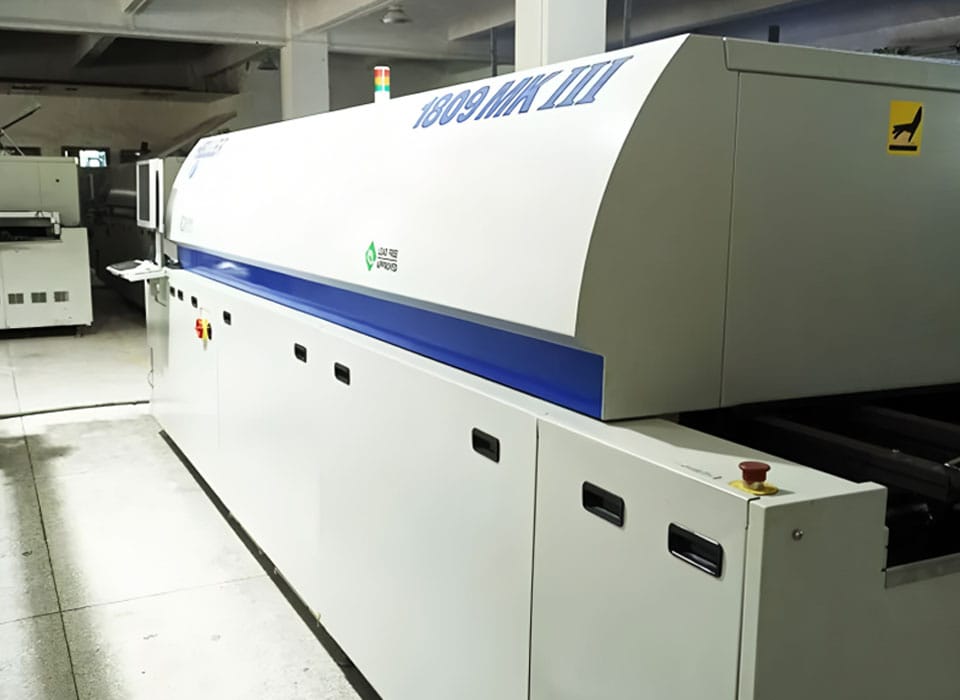

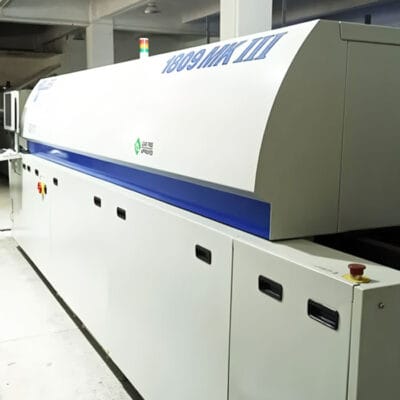

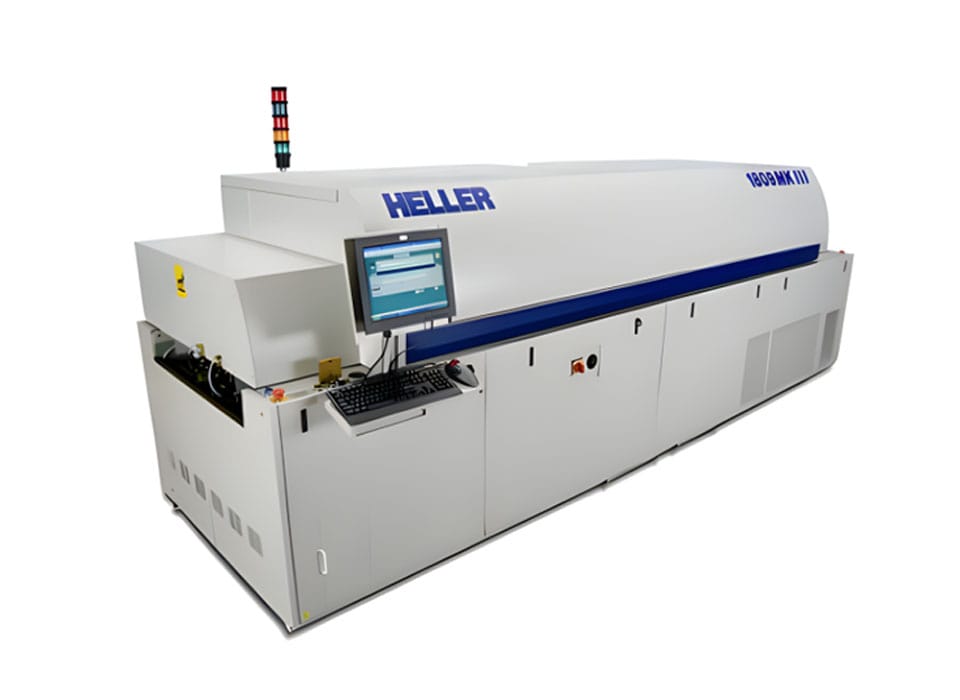

Conveyor System
| Specification | Value |
|---|---|
| Mesh Belt Conveyor Height | 35.5″ + 2.0″ (90 cm + 5 cm) |
| Maximum PCB Width | 18″ (46 cm) / 22” (56 cm) with wider module |
| Space Required Between PCBs | 0.0″ (0.0 cm) |
| Conveyor Length On-Load | 18″ (46 cm) * 3″ (7.5 cm) |
| Conveyor Length Off-Load | 18″ (46 cm) * 3″ (7.5 cm) |
| Heated Tunnel Length | 105″ (254 cm) |
| Process Clearance Above Mesh Belt | 2.3″ (5.8 cm) |
| Mesh Belt Pitch | 0.5″ (1.27 cm) |
| Maximum Conveyor Speed | 74″/Min (188 cm/min) |
| Conveyor Direction | Left to Right (Standard), Right to Left (Optional) |
| Conveyor Speed Control | Closed Loop |
Edge Hold Conveyor System
| Specification | Value |
|---|---|
| Height from Floor – Standard | 37.0″ + 2.0″ (94 cm + 5 cm) |
| Height from Floor – Optional | 32.6″ +3.9″ / -.4″ (83 cm +10 cm / -1 cm) |
| Clearance Above & Below Conveyor Pins | 1.15″ (2.9 cm) |
| Length of PCB Support Pins | 0.187″ (4.75 mm) |
| 3 mm Long Support Pins | Optional |
| Minimum/Maximum Board Width | 2.0″–18″ (5–46 cm), up to 22” (56 cm) optional |
| Power Width Adjustment | Standard |
| Computer Controlled Width Adjust | Optional |
| Auto Lubrication System | Optional |
Heating System
| Specification | Value |
|---|---|
| Forced Convection Zones (Top & Bottom) | 9 |
| Heater Type | Instant response open coil |
| Heater Material | Nichrome |
| Profile Change Time | 5 – 15 minutes |
| Temperature Control Accuracy | ±0.1°C |
| Cross-Belt Temperature Tolerance | ±2.0°C |
| Heater Wattage Per Zone | 6000 W |
| Temperature Range Standard | 60 – 350°C |
| High Temperature Option | Up to 450°C |
Cooling System
| Specification | Value |
|---|---|
| Number of Cooling Zones (Standard) | 2 |
| Additional Cooling Zones | Optional |
| Water Cooling | Optional |
