Data Sheet
| Item | Specification |
|---|---|

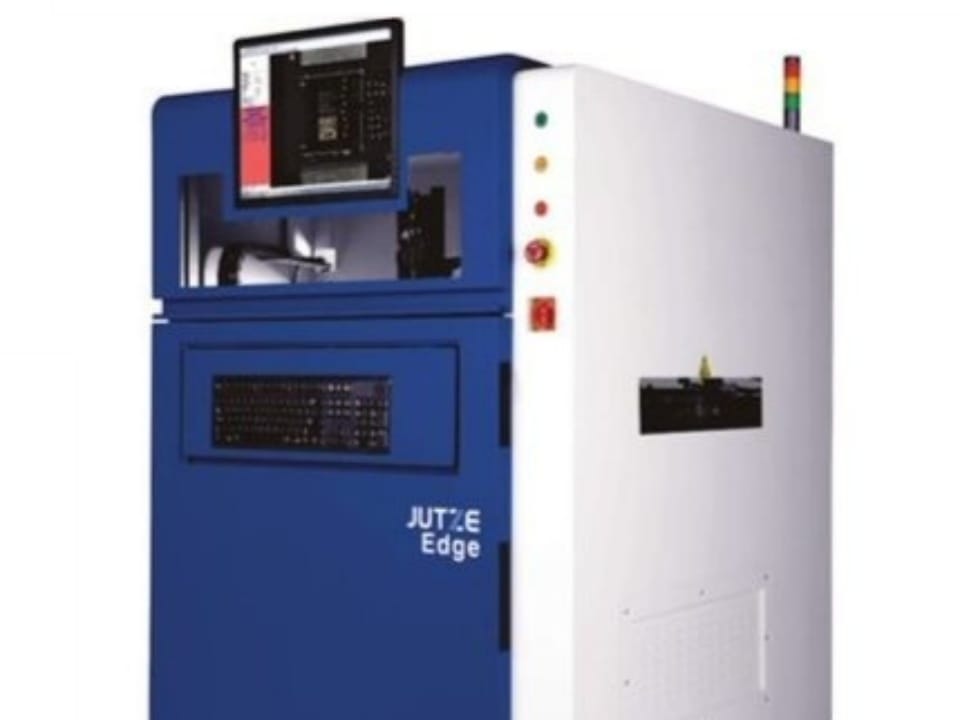

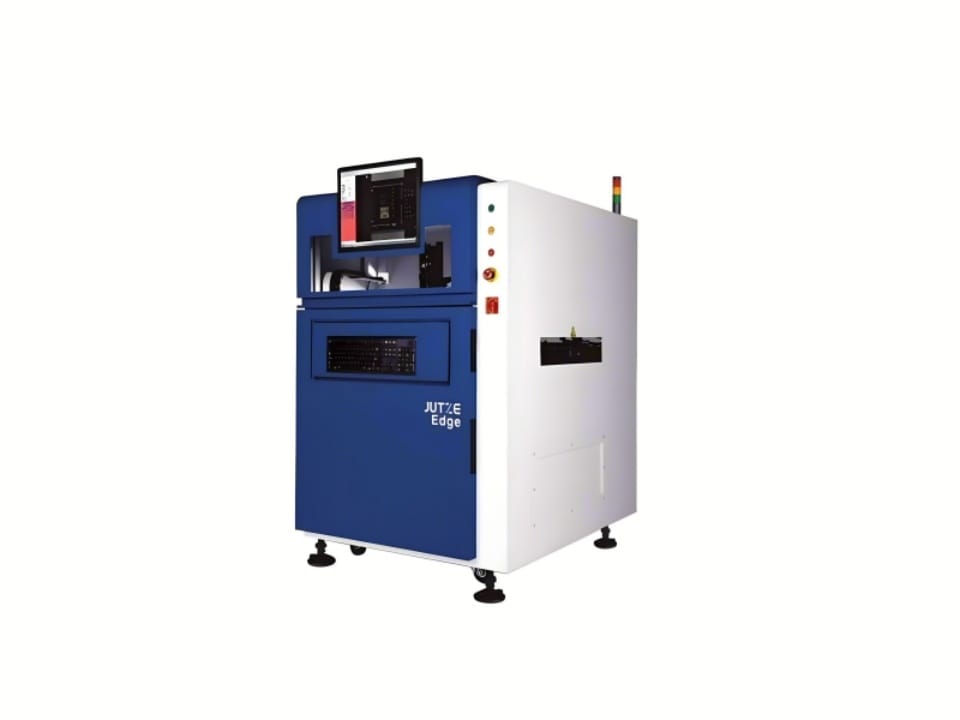

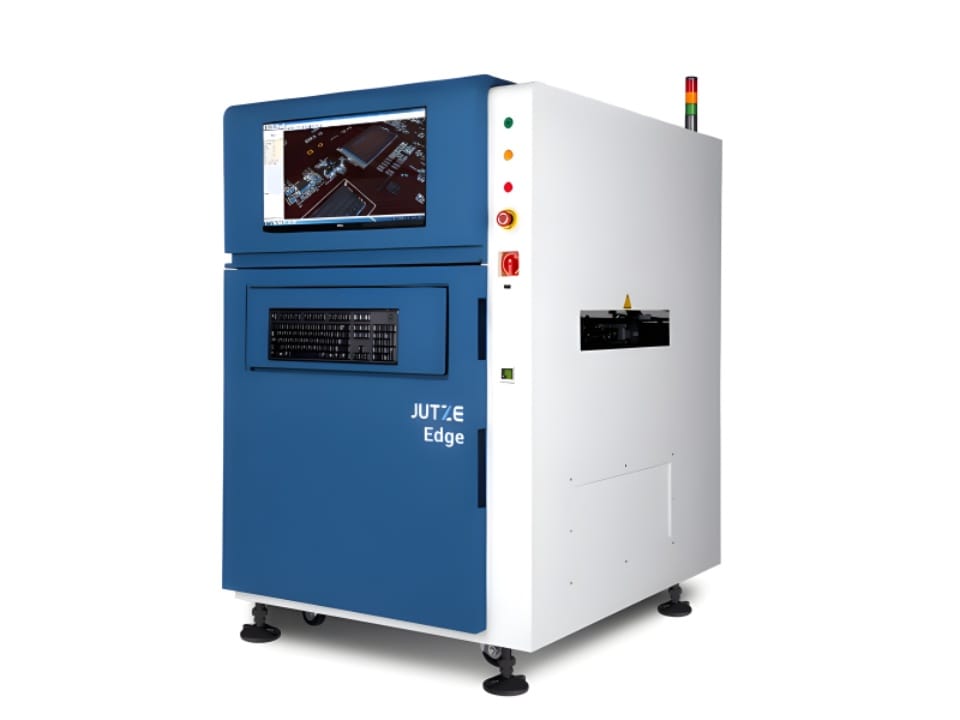

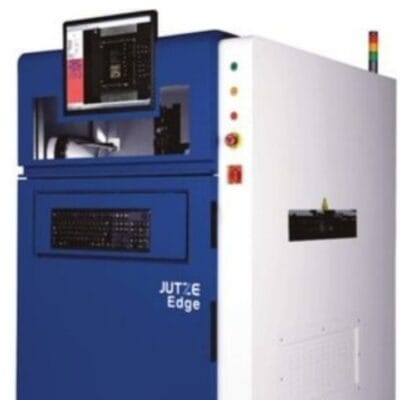

| Device Type | Online Automatic 3D AOI |
| Features | Perfect combination of 2D & 3D inspection |
| Technology | 3D digital grating projection + Moiré fringe phase difference algorithm |
| Applicable Substrate | 50mm × 70mm – 510mm × 460mm |
| Substrate Thickness | 0.6mm – 6.0mm |
| Resolution | 18.3μm / 10μm / 15μm |
| Dimensions | W1080 × D1300 × H1850 mm |
| Weight | 777 kg |
| Edge-D Model | Fully automatic online dual track 3D AOI; Substrate size 50mm×70mm – 535mm×330mm |
| Edge-L Model | Fully automatic online single track 3D AOI; Substrate size 50mm×70mm – 850mm×610mm |
