Key Features
- High-precision automatic soldering for PCB assemblies
- Advanced temperature control with stable heating performance
- Multi-axis motion for flexible soldering paths
- Compact design with intuitive operation
- Supports complex soldering applications with consistent results
Technical Specifications
| Item | Specification |
|---|---|

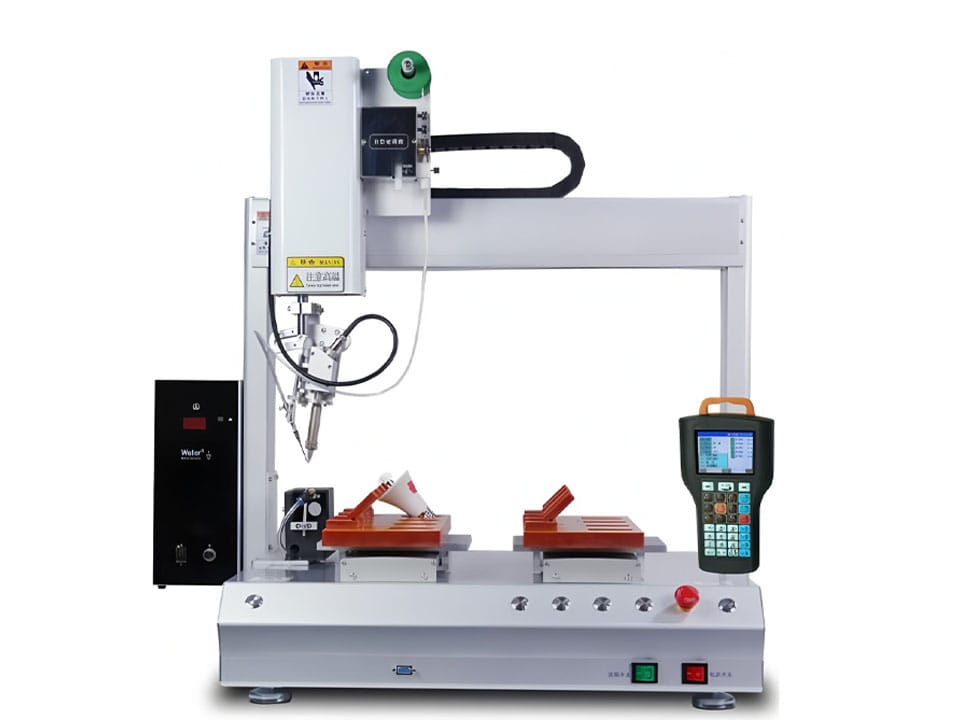

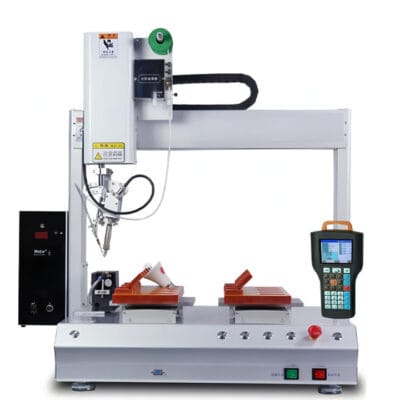

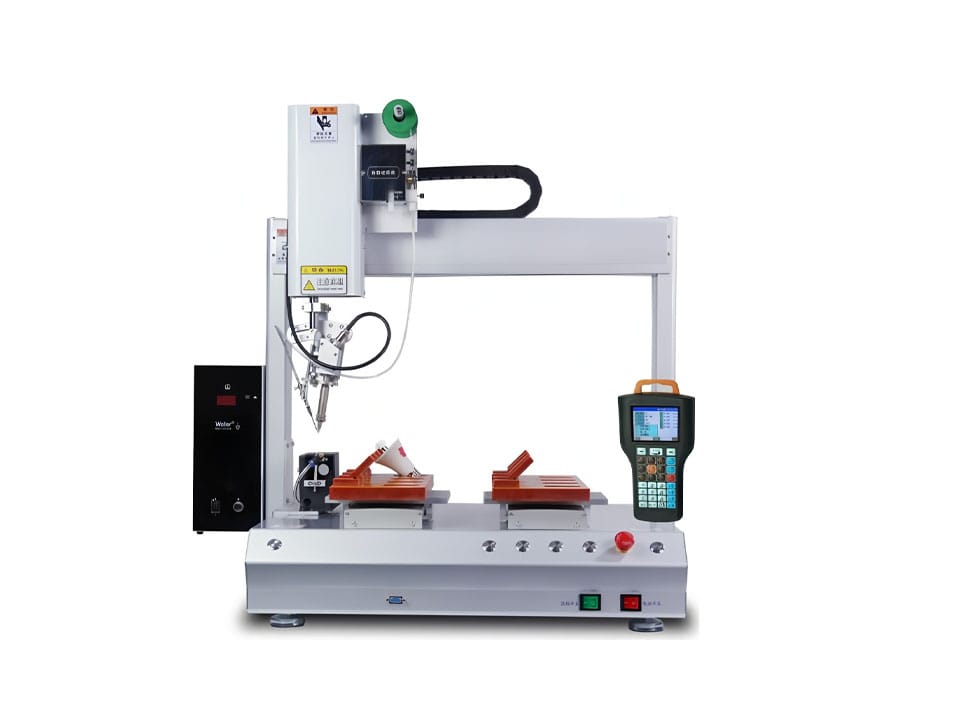

| Model | MF-HX5331R Soldering Robot |
| Motion System | Multi-axis (X/Y/Z + rotation) |
| Soldering Range (X/Y/Z) | 300mm × 300mm × 100mm |
| Rotation Axis | 360° continuous |
| Temperature Range | 0–500°C |
| Temperature Accuracy | ±2°C |
| Heating Core | High-frequency heating element |
| Moving Speed | 0–800 mm/s |
| Resolution Capability | 0.01 mm/axis |
| Repeat Accuracy | ±0.02 mm/axis |
| Program Storage | 100+ sets |
| Control System | PLC + LCD teaching pendant |
| Motor System | Japan Shinano Motor |
| Guide Rails | Taiwan Hiwin |
| Transmission | Italy Elate belt |
| Input Power | AC 110V–220V |
| External Interface | RS232 |
| Machine Size | 530 × 590 × 860 mm |
| Weight | 48 kg |
Applications
- Soldering of PCBs, connectors, and fine-pitch components
- Automated production lines for consumer electronics
- OEM/ODM high-precision soldering requirements
