| Item | Specification |
|---|---|
| Model | MF-HX5331S |
| Type | Automatic Soldering Robot |
| Application | Electronics, PCB Assembly |
| Control System | Advanced precision motion control |
| Temperature Range | 0–500℃ (±2℃ accuracy) |
| Heating Core | High-frequency heating |
| Axis Range (X/Y/Z) | Customizable (e.g., 300/300/100mm) |
| Maximum Load | 15 kg (depending on config) |
| Moving Speed | Up to 800 mm/sec |
| Repeat Accuracy | ±0.02 mm/axis |
| Program Capacity | >100 sets programmable |
| Display/Control | LCD teaching box |
| Motor System | Japan Shinano Motor |
| Guide Rails | Taiwan Hiwin |
| Transmission | Italy Elate belt |
| Power Supply | AC 110–220V, 50/60Hz |
| External Interface | RS232 |
| Machine Size | Approx. 530×590×860 mm |
| Weight | ~48 kg |

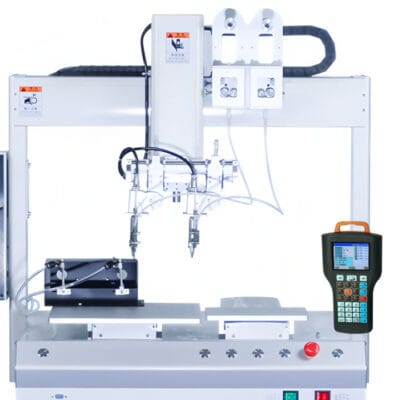

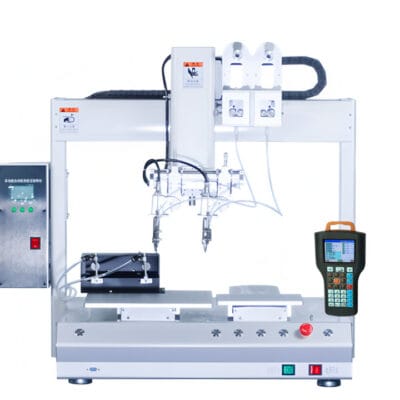

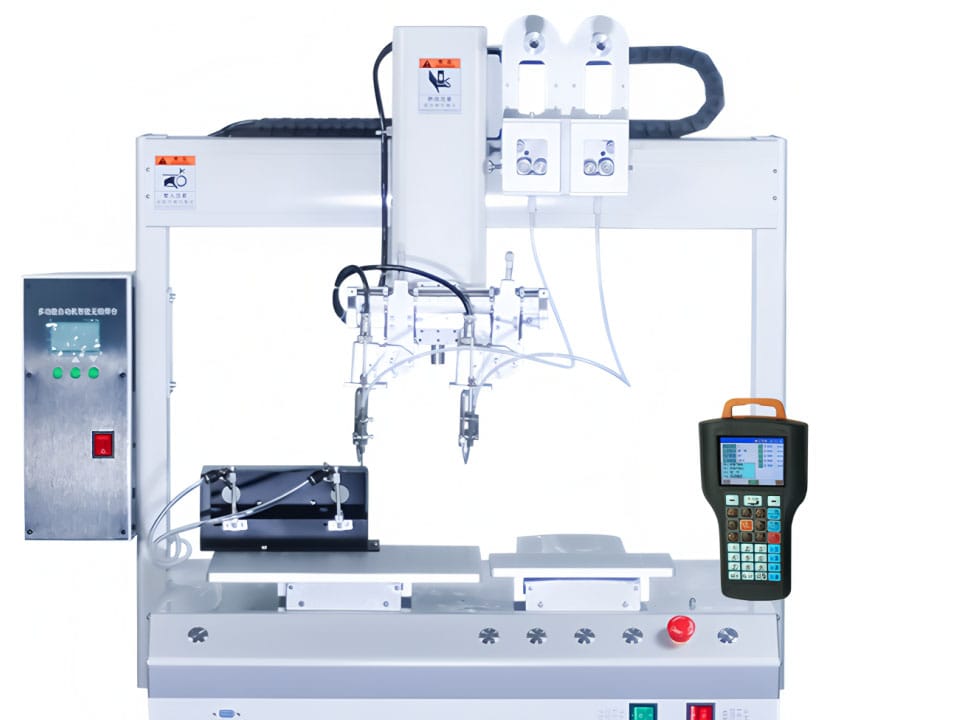

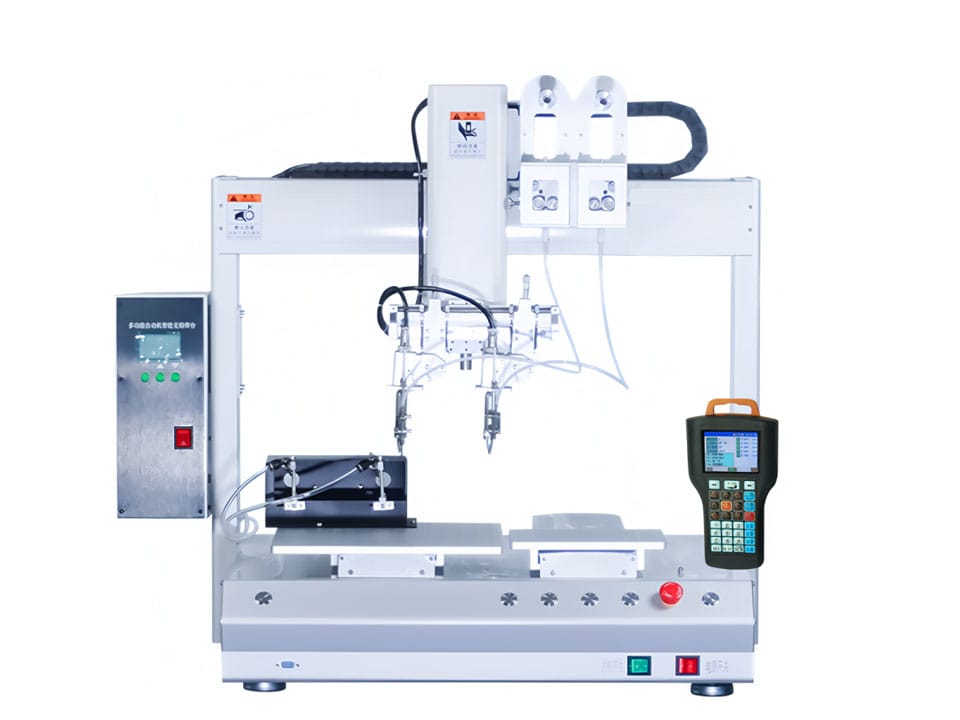

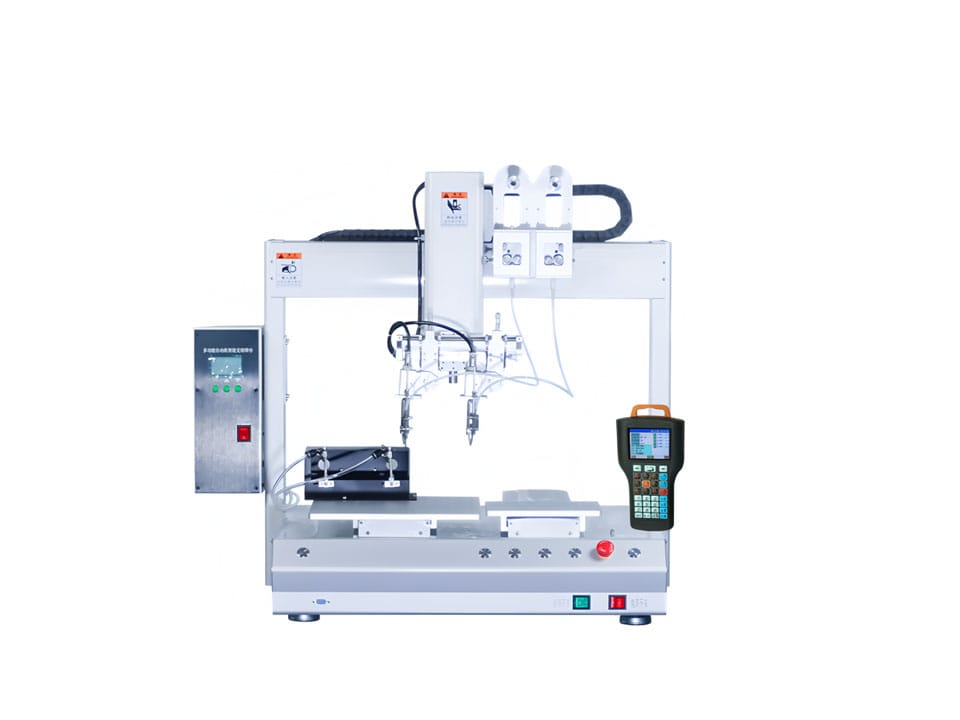

MF-HX5331S Soldering Robot OEM Manufacturer Factory Supply
MF-HX5331S Soldering Robot offers precise, efficient, and stable soldering with advanced control technology. Designed for OEM manufacturing, it ensures consistent quality, high flexibility, and reliable automation to meet modern electronics production needs. Perfect for factory supply integration.
