| Feature | Description |
|---|---|
| Model | BF-Tristar II 3D AOI |
| Application | PCB 3D Automated Optical Inspection |
| Inspection Method | True 3D imaging with multi-angle cameras |
| Resolution | 10µm pixel resolution |
| Inspection Speed | 65,000 UPH (Units per Hour) |
| Max PCB Size | 510mm x 460mm |
| Component Size Range | 0201 to 50mm |
| Defect Detection | Solder defects, voids, bridges, misalignment |
| Height Measurement | Full 3D profiling with micron accuracy |
| Control System | AI-driven inspection algorithms |
| Power Consumption | 1.6 kVA |
| Dimensions | 1,850mm x 1,250mm x 1,500mm |
| Weight | 2,100kg |

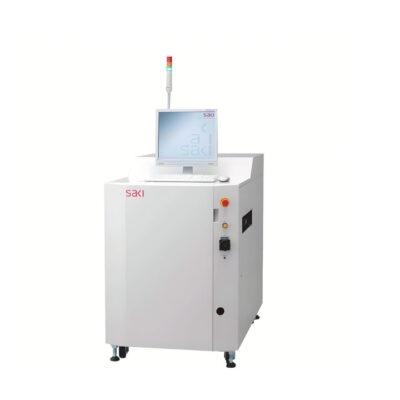

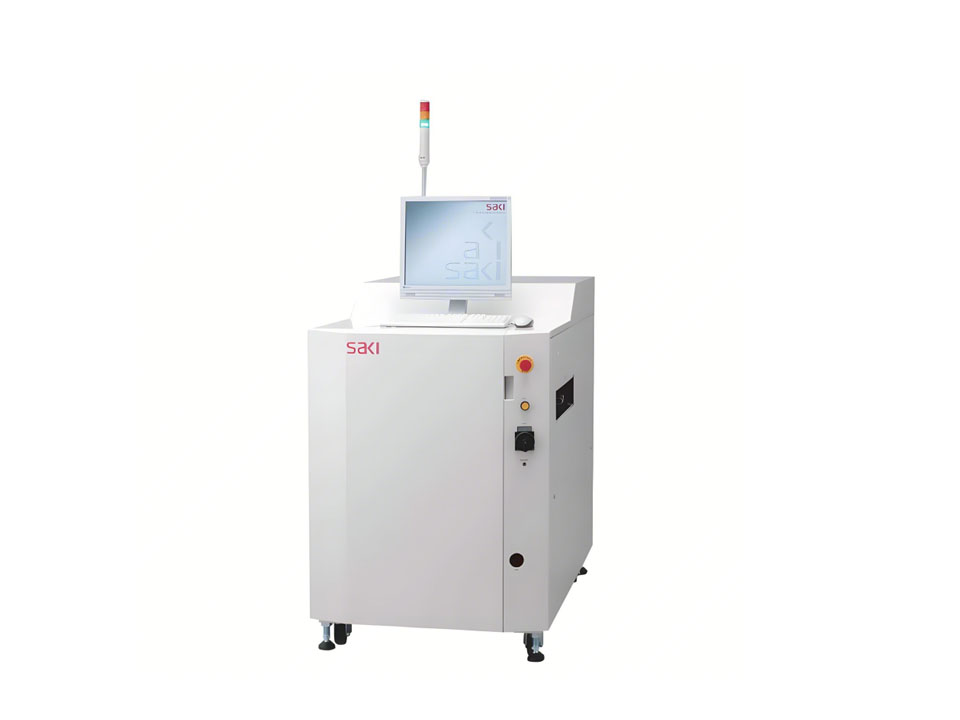

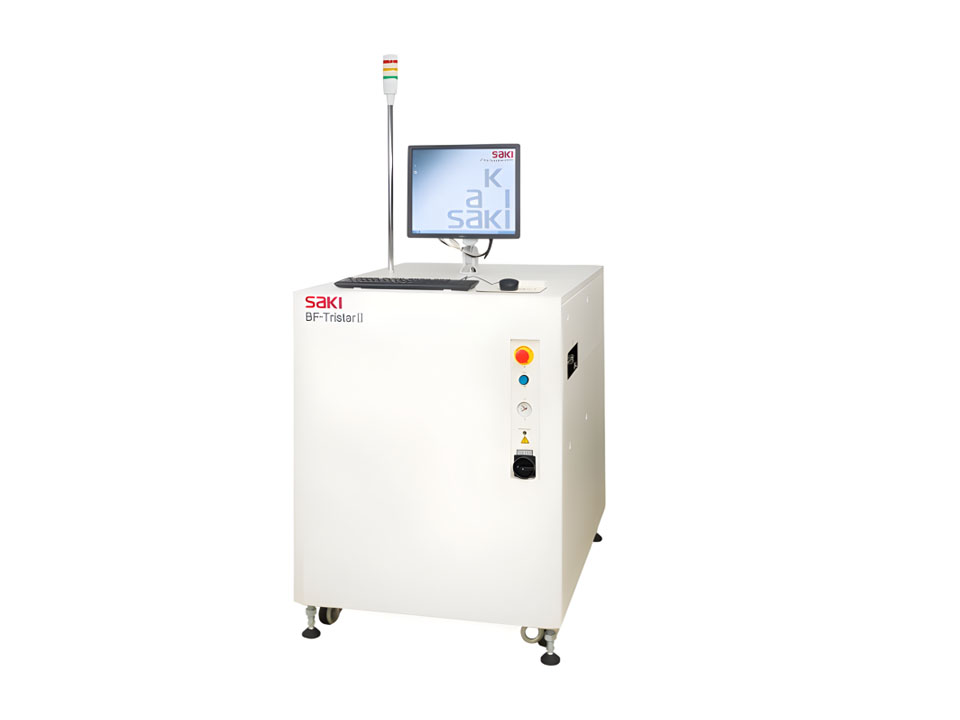

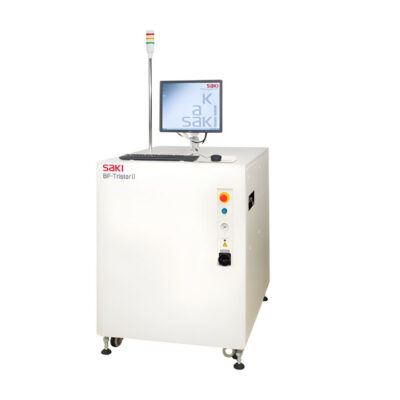

Saki BF-Tristar II 3D AOI Wholesale Advanced Inspection System
The Saki BF-Tristar II 3D AOI offers advanced inspection for PCB assemblies with high-resolution imaging and fast 3D analysis. It ensures precise defect detection, accurate height measurement, and superior quality control. Perfect for high-volume manufacturing, it enhances productivity and reliability in electronic production lines.
