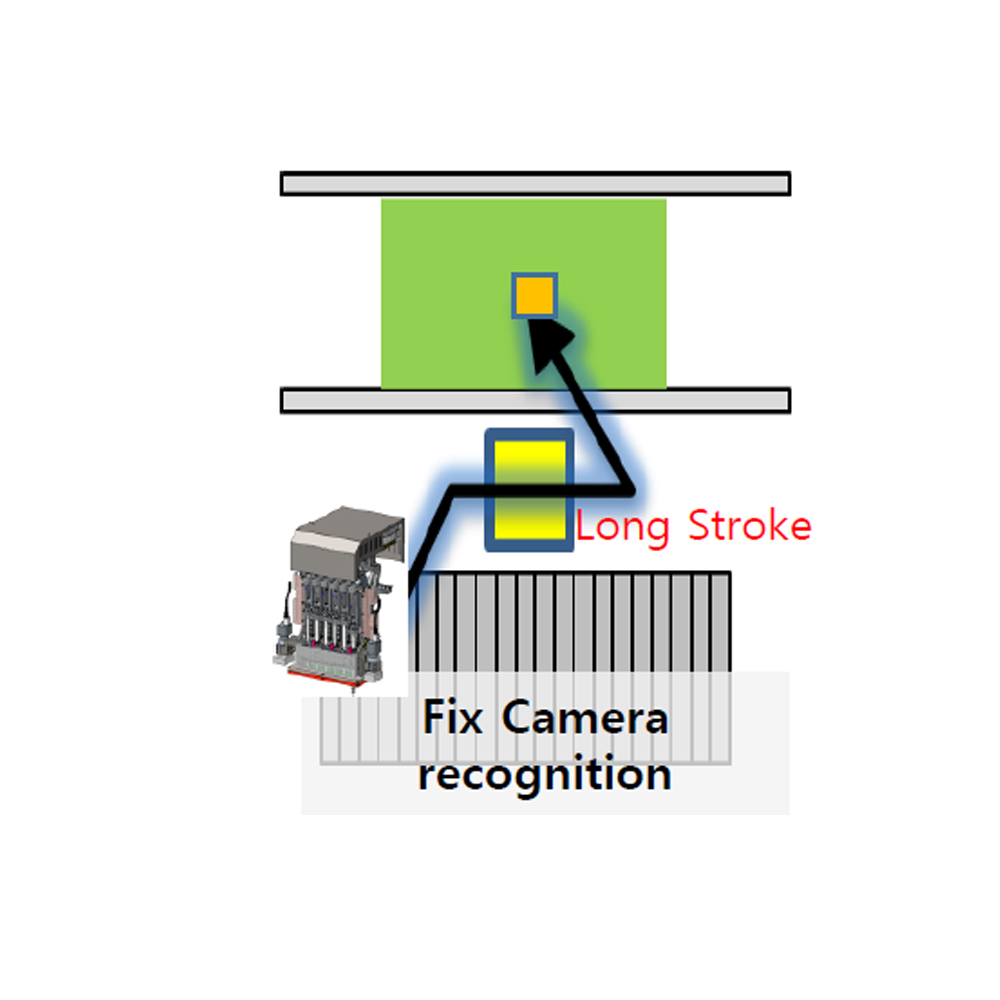

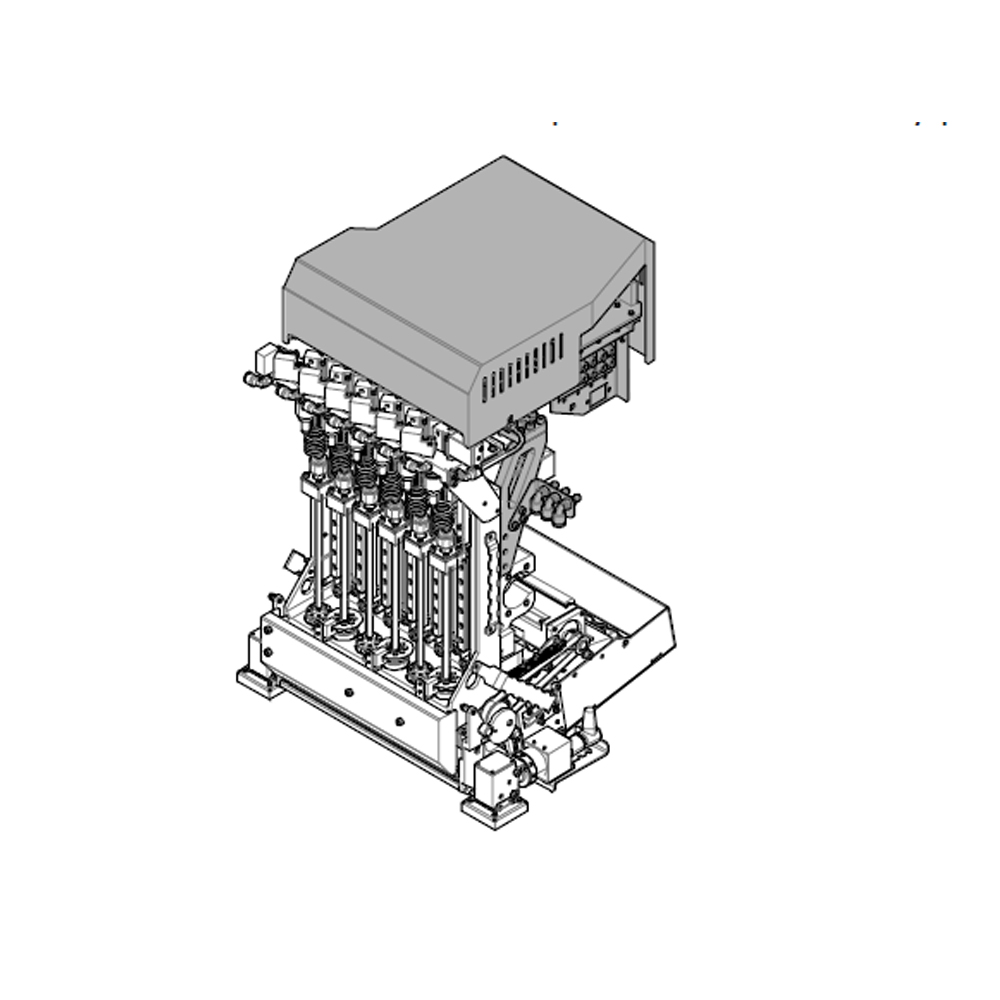

Built for manufacturers that need speed, accuracy and production flexibility, the DECAN L1 SMT pick and place machine delivers reliable placement performance for modern electronics assembly. Its 6-spindle, single-gantry platform reaches up to 30,000 CPH, with QFP100 placement at 5,500 CPH. A high-speed fiducial camera, on-time calibration and NPI functions help improve setup efficiency and stable quality. The machine handles 0402 components through 55 mm parts, L100 mm components and up to 25 mm thickness, while supporting PCB sizes up to 510×510 mm or 1500×510 mm. Meraif Limited supplies complete SMT solutions and international support for every production line worldwide.

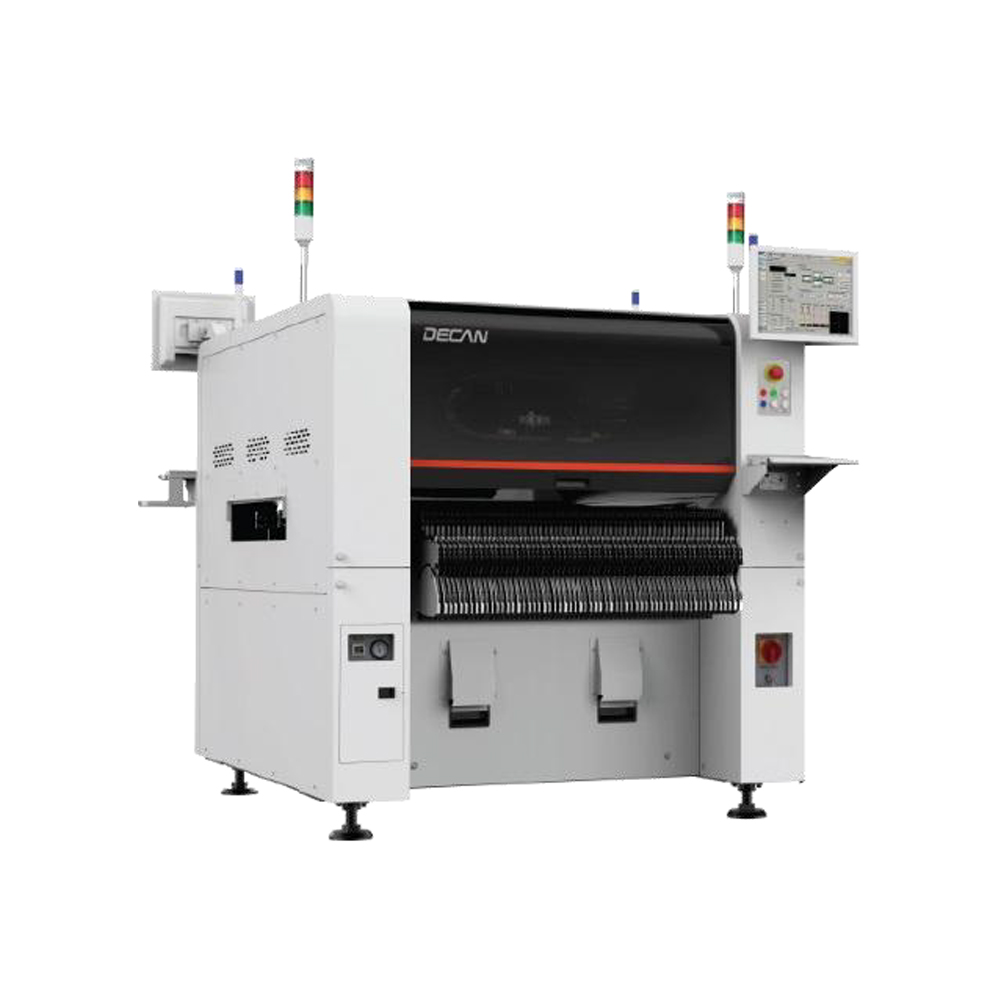

DECAN L1 SMT Pick and Place Machine | 30,000 CPH Mounter
The DECAN L1 SMT pick and place machine is designed for high-speed, precise PCB assembly. With 6 spindles, 1 gantry, 30,000 CPH output, ±30μm IC accuracy, high-speed fiducial vision, on-time calibration and NPI functions, it supports components from 0402 to 55mm, up to 25mm thick for flexible lines.
