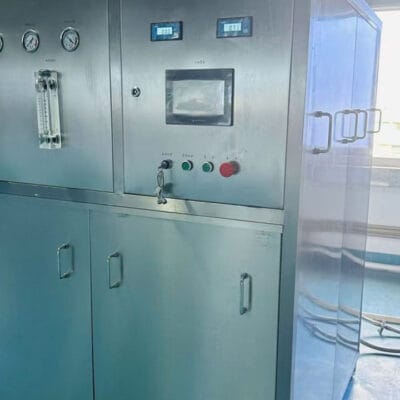

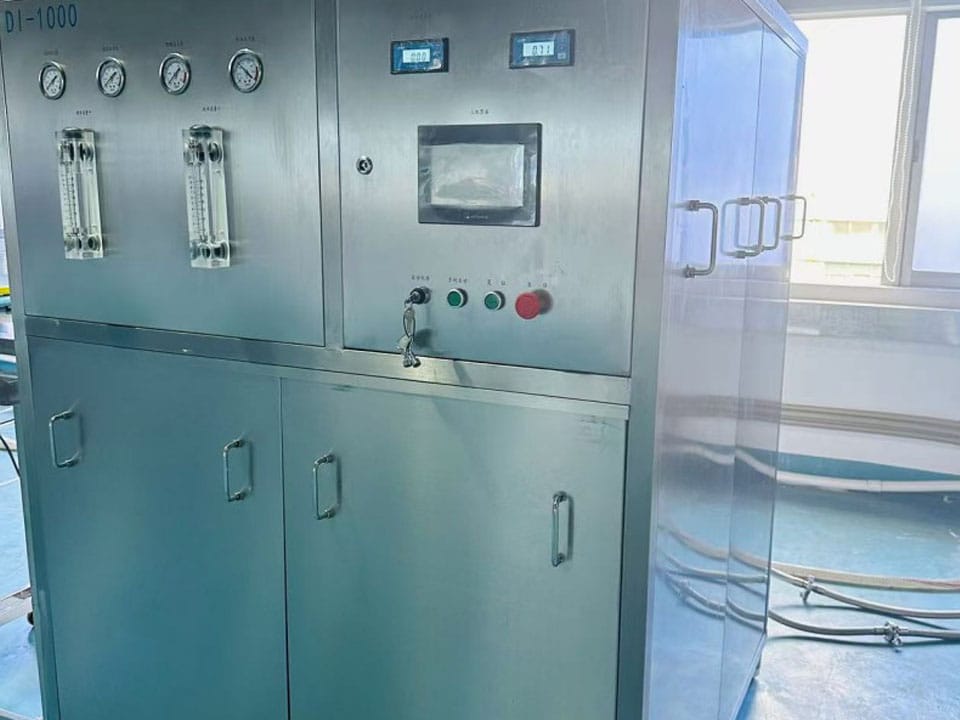

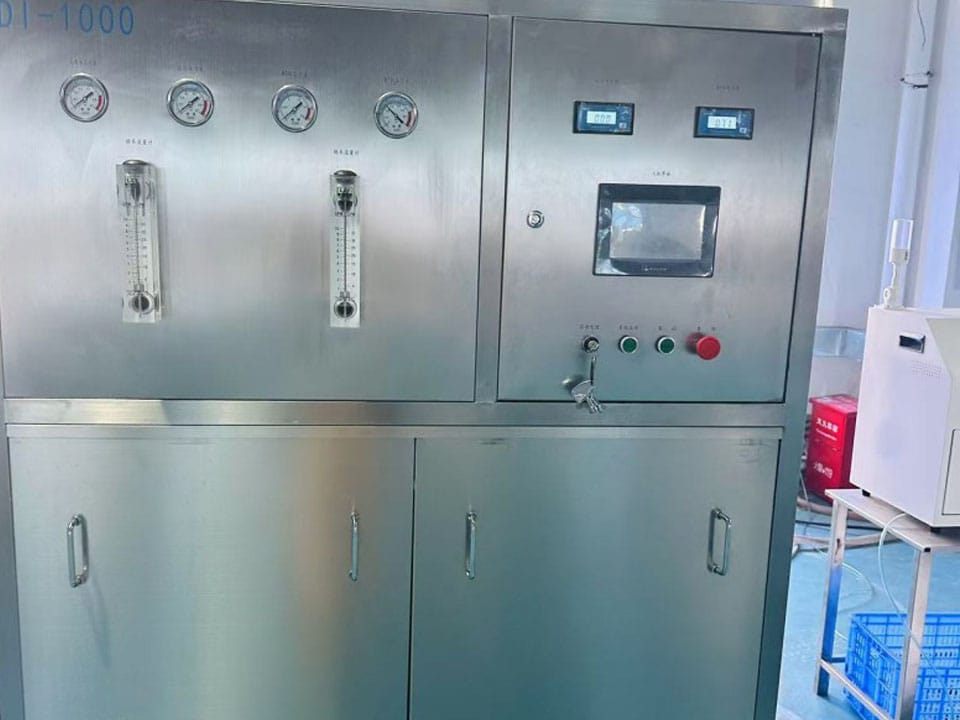

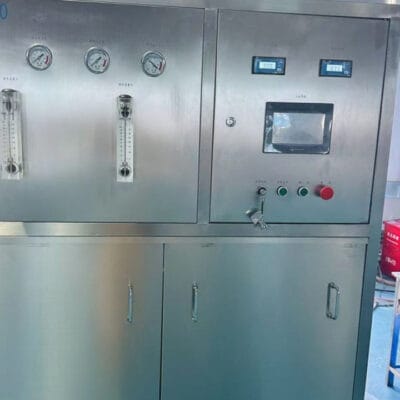

Machine Application
- Converts tap water into DI water for PCBA inline cleaning rinse.
- Includes pretreatment, RO system, and MB (mixed resin bed) system.
- Output: 50% DI water, 50% discharged to sewer (depending on water quality).
Machine Features
- Advanced DI water making process with stable output quality.
- High-quality spare parts ensure stable operation & low power consumption.
- Durable SUS304 pipes for enhanced stability.
- Multi-level MB polishing improves both output and quality.
- Compact, enclosed design with firm structure.
- Automatic operation with DI water resistivity ≥10MΩ.
Technical Specifications
| S/N | Item | Technical Spec | Remarks |
|---|---|---|---|
| 1 | Tap water supply | 2.5T/Hour | |
| 2 | Tap water pressure | 0.2~0.3Mpa | |
| 3 | DI water output | 1000L/H | |
| 4 | DI water tank | 160L | 1 pc |
| 5 | DI water resistivity | ≥10MΩ | |
| 6 | DI water pressure pump | 0.37KW | 1 pc |
| 7 | Multi-material filter | 50L Quartz Sand + Carbon | 1 pc |
| 8 | Cationic softener | 75L cation resin | 1 pc |
| 9 | Filter | 20 inch 5um | 2 pcs |
| 10 | High pressure pump | 1.1KW | 1 pc |
| 11 | RO film | DOW40*40 | 4 pcs |
| 12 | MB polishing resin | 25L + 25L | 2 pcs |
| 13 | Power | AC380V, 50/60Hz, 1.6KW | |
| 14 | Machine size | L1300 × W1360 × H1850mm | |
| 15 | Weight | 700kg | |
| 16 | Material | SUS304 |
